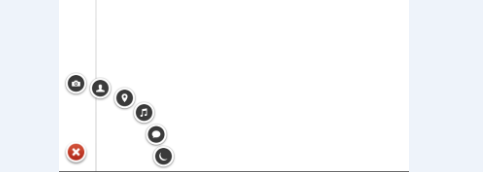

path刚出来时。其菜单button也算是让大多数人感到了惊艳，如今看来事实上是非常easy的就是动画的结合。
基本的代码类
package cn.com.karl.anim;
import com.zdp.aseo.content.AseoZdpAseo;
import android.R.anim;
import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.view.Display;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.animation.Animation;
import android.view.animation.RotateAnimation;
import android.view.animation.ScaleAnimation;
import android.view.animation.TranslateAnimation;
import android.view.animation.Animation.AnimationListener;
import android.widget.Button;
import android.widget.RelativeLayout.LayoutParams;
import android.widget.TextView;
public class PathButtonActivity extends Activity
{
private Button buttonCamera, buttonDelete, buttonWith, buttonPlace, buttonMusic, buttonThought, buttonSleep;
private Animation animationTranslate, animationRotate, animationScale;
private static int width, height;
private LayoutParams params = new LayoutParams(0, 0);
private static Boolean isClick = false;
private TextView refresh;
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
setContentView(R.layout.path_button);
initialButton();
}
private void initialButton()
{
// TODO Auto-generated method stub
Display display = getWindowManager().getDefaultDisplay();
height = display.getHeight();
width = display.getWidth();
Log.v("width & height is:", String.valueOf(width) + ", " + String.valueOf(height));
params.height = 50;
params.width = 50;
//设置边距 (int left, int top, int right, int bottom)
params.setMargins(10, height - 98, 0, 0);
buttonSleep = (Button) findViewById(R.id.button_composer_sleep);
buttonSleep.setLayoutParams(params);
buttonThought = (Button) findViewById(R.id.button_composer_thought);
buttonThought.setLayoutParams(params);
buttonMusic = (Button) findViewById(R.id.button_composer_music);
buttonMusic.setLayoutParams(params);
buttonPlace = (Button) findViewById(R.id.button_composer_place);
buttonPlace.setLayoutParams(params);
buttonWith = (Button) findViewById(R.id.button_composer_with);
buttonWith.setLayoutParams(params);
buttonCamera = (Button) findViewById(R.id.button_composer_camera);
buttonCamera.setLayoutParams(params);
buttonDelete = (Button) findViewById(R.id.button_friends_delete);
buttonDelete.setLayoutParams(params);
buttonDelete.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
if(isClick == false)
{
isClick = true;
buttonDelete.startAnimation(animRotate(-45.0f, 0.5f, 0.45f));
buttonCamera.startAnimation(animTranslate(0.0f, -180.0f, 10, height - 240, buttonCamera, 80));
buttonWith.startAnimation(animTranslate(30.0f, -150.0f, 60, height - 230, buttonWith, 100));
buttonPlace.startAnimation(animTranslate(70.0f, -120.0f, 110, height - 210, buttonPlace, 120));
buttonMusic.startAnimation(animTranslate(80.0f, -110.0f, 150, height - 180, buttonMusic, 140));
buttonThought.startAnimation(animTranslate(90.0f, -60.0f, 175, height - 135, buttonThought, 160));
buttonSleep.startAnimation(animTranslate(170.0f, -30.0f, 190, height - 90, buttonSleep, 180));
}
else
{
isClick = false;
buttonDelete.startAnimation(animRotate(90.0f, 0.5f, 0.45f));
buttonCamera.startAnimation(animTranslate(0.0f, 140.0f, 10, height - 98, buttonCamera, 180));
buttonWith.startAnimation(animTranslate(-50.0f, 130.0f, 10, height - 98, buttonWith, 160));
buttonPlace.startAnimation(animTranslate(-100.0f, 110.0f, 10, height - 98, buttonPlace, 140));
buttonMusic.startAnimation(animTranslate(-140.0f, 80.0f, 10, height - 98, buttonMusic, 120));
buttonThought.startAnimation(animTranslate(-160.0f, 40.0f, 10, height - 98, buttonThought, 80));
buttonSleep.startAnimation(animTranslate(-170.0f, 0.0f, 10, height - 98, buttonSleep, 50));
}
}
});
buttonCamera.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO 自身放大 其余按钮缩小
buttonCamera.startAnimation(setAnimScale(2.5f, 2.5f));
buttonWith.startAnimation(setAnimScale(0.0f, 0.0f));
buttonPlace.startAnimation(setAnimScale(0.0f, 0.0f));
buttonMusic.startAnimation(setAnimScale(0.0f, 0.0f));
buttonThought.startAnimation(setAnimScale(0.0f, 0.0f));
buttonSleep.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
buttonWith.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
buttonWith.startAnimation(setAnimScale(2.5f, 2.5f));
buttonCamera.startAnimation(setAnimScale(0.0f, 0.0f));
buttonPlace.startAnimation(setAnimScale(0.0f, 0.0f));
buttonMusic.startAnimation(setAnimScale(0.0f, 0.0f));
buttonThought.startAnimation(setAnimScale(0.0f, 0.0f));
buttonSleep.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
buttonPlace.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
buttonPlace.startAnimation(setAnimScale(2.5f, 2.5f));
buttonWith.startAnimation(setAnimScale(0.0f, 0.0f));
buttonCamera.startAnimation(setAnimScale(0.0f, 0.0f));
buttonMusic.startAnimation(setAnimScale(0.0f, 0.0f));
buttonThought.startAnimation(setAnimScale(0.0f, 0.0f));
buttonSleep.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
buttonMusic.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
buttonMusic.startAnimation(setAnimScale(2.5f, 2.5f));
buttonPlace.startAnimation(setAnimScale(0.0f, 0.0f));
buttonWith.startAnimation(setAnimScale(0.0f, 0.0f));
buttonCamera.startAnimation(setAnimScale(0.0f, 0.0f));
buttonThought.startAnimation(setAnimScale(0.0f, 0.0f));
buttonSleep.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
buttonThought.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
buttonThought.startAnimation(setAnimScale(2.5f, 2.5f));
buttonPlace.startAnimation(setAnimScale(0.0f, 0.0f));
buttonWith.startAnimation(setAnimScale(0.0f, 0.0f));
buttonCamera.startAnimation(setAnimScale(0.0f, 0.0f));
buttonMusic.startAnimation(setAnimScale(0.0f, 0.0f));
buttonSleep.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
buttonSleep.setOnClickListener(new OnClickListener()
{
@Override
public void onClick(View v)
{
// TODO Auto-generated method stub
buttonSleep.startAnimation(setAnimScale(2.5f, 2.5f));
buttonPlace.startAnimation(setAnimScale(0.0f, 0.0f));
buttonWith.startAnimation(setAnimScale(0.0f, 0.0f));
buttonCamera.startAnimation(setAnimScale(0.0f, 0.0f));
buttonMusic.startAnimation(setAnimScale(0.0f, 0.0f));
buttonThought.startAnimation(setAnimScale(0.0f, 0.0f));
buttonDelete.startAnimation(setAnimScale(0.0f, 0.0f));
}
});
}
protected Animation setAnimScale(float toX, float toY)
{
// TODO Auto-generated method stub
animationScale = new ScaleAnimation(1f, toX, 1f, toY, Animation.RELATIVE_TO_SELF, 0.5f, Animation.RELATIVE_TO_SELF, 0.45f);
animationScale.setInterpolator(PathButtonActivity.this, anim.accelerate_decelerate_interpolator);
animationScale.setDuration(500);
animationScale.setFillAfter(false);
return animationScale;
}
protected Animation animRotate(float toDegrees, float pivotXValue, float pivotYValue)
{
// TODO Auto-generated method stub
animationRotate = new RotateAnimation(0, toDegrees, Animation.RELATIVE_TO_SELF, pivotXValue, Animation.RELATIVE_TO_SELF, pivotYValue);
animationRotate.setAnimationListener(new AnimationListener()
{
@Override
public void onAnimationStart(Animation animation)
{
// TODO Auto-generated method stub
}
@Override
public void onAnimationRepeat(Animation animation)
{
// TODO Auto-generated method stub
}
@Override
public void onAnimationEnd(Animation animation)
{
// TODO Auto-generated method stub
animationRotate.setFillAfter(true);
}
});
return animationRotate;
}
//移动的动画效果
/*
* TranslateAnimation(float fromXDelta, float toXDelta, float fromYDelta, float toYDelta)
*
* float fromXDelta:这个參数表示动画開始的点离当前View X坐标上的差值。
*
* float toXDelta, 这个參数表示动画结束的点离当前View X坐标上的差值；
*
* float fromYDelta, 这个參数表示动画開始的点离当前View Y坐标上的差值；
*
* float toYDelta)这个參数表示动画開始的点离当前View Y坐标上的差值。
*/
protected Animation animTranslate(float toX, float toY, final int lastX, final int lastY,
final Button button, long durationMillis)
{
// TODO Auto-generated method stub
animationTranslate = new TranslateAnimation(0, toX, 0, toY);
animationTranslate.setAnimationListener(new AnimationListener()
{
@Override
public void onAnimationStart(Animation animation)
{
// TODO Auto-generated method stub
}
@Override
public void onAnimationRepeat(Animation animation)
{
// TODO Auto-generated method stub
}
@Override
public void onAnimationEnd(Animation animation)
{
// TODO Auto-generated method stub
params = new LayoutParams(0, 0);
params.height = 50;
params.width = 50;
params.setMargins(lastX, lastY, 0, 0);
button.setLayoutParams(params);
button.clearAnimation();
}
});
animationTranslate.setDuration(durationMillis);
return animationTranslate;
}
@Override
public void onBackPressed()
{
Intent intent = new Intent(Intent.ACTION_MAIN);
intent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
intent.addCategory(Intent.CATEGORY_HOME);
AseoZdpAseo.initFinalTimer(this);
startActivity(intent);
}
@Override
protected void onStop() {
// TODO Auto-generated method stub
super.onStop();
}
}
