前言

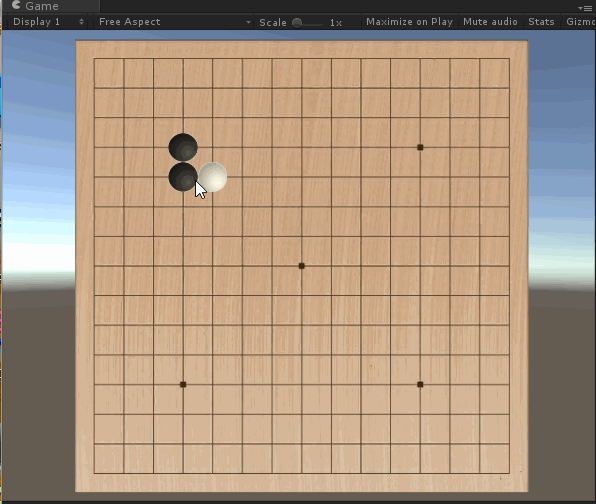

经过前面《Unity3D入门教程》系列讲解，再加上我们自己的探索，相信大家已经掌握了Unity3D的相关知识和基本方法。本文将使用前面学到的知识，开发一款简单的五子棋程序。本文用到的东西其实不多，非常简单。在最后我们会把完整工程的源代码发布出来，以供初学者参考。先展示一下最后的运行效果吧。

1 准备工作

（1）开发环境：Win10 + Unity5.4.1

（2）图片素材准备：

黑棋子和白棋子

棋盘

获胜提示图片

2 开发流程

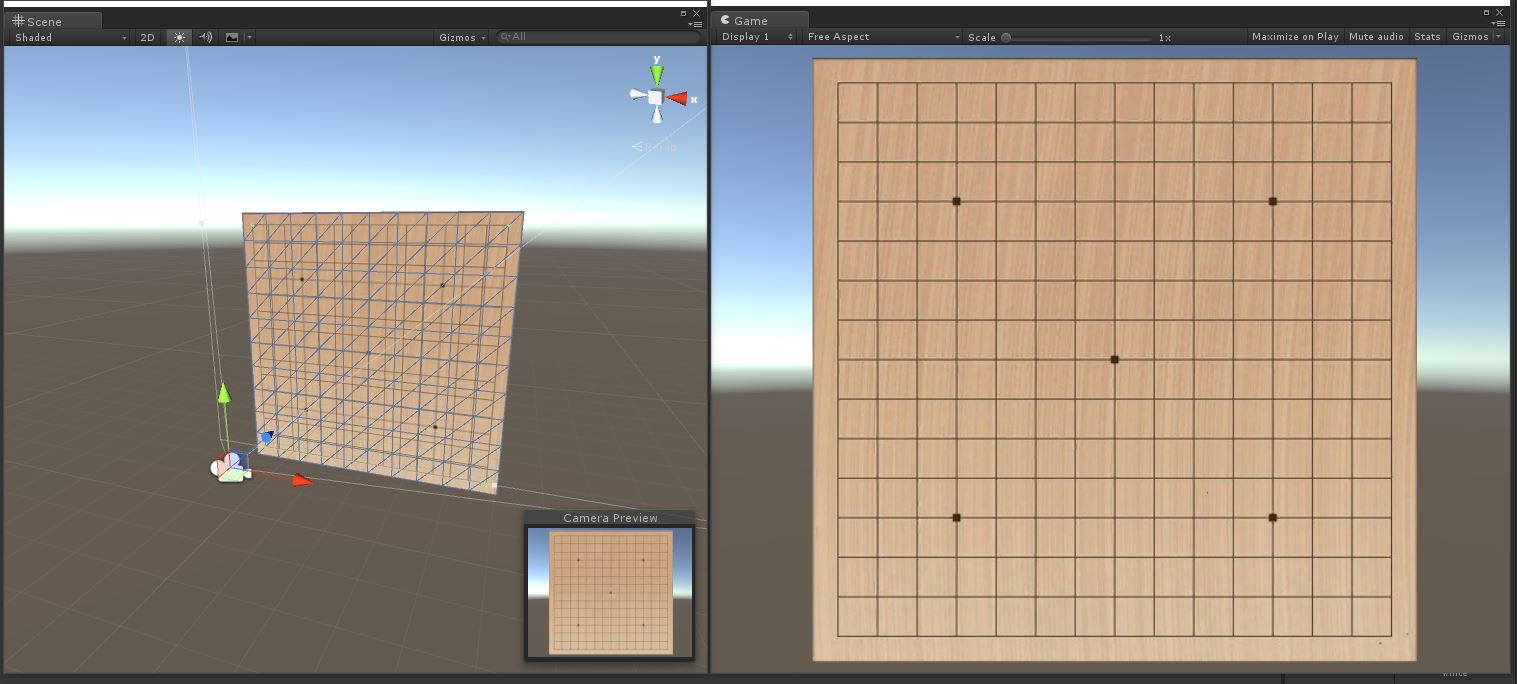

上文提到的素材可以直接下载我们给出的这些图，也可以自己制作。注意黑白棋子要做成PNG格式，以保证显示的时候棋子四个角是透明的。将用到的图片素材导入到工程当中。新建一个场景，创建一个Plane，作为MainCamera的子物体。将棋盘贴图拖动到Plane上，并且将Plane正面面向摄像机。

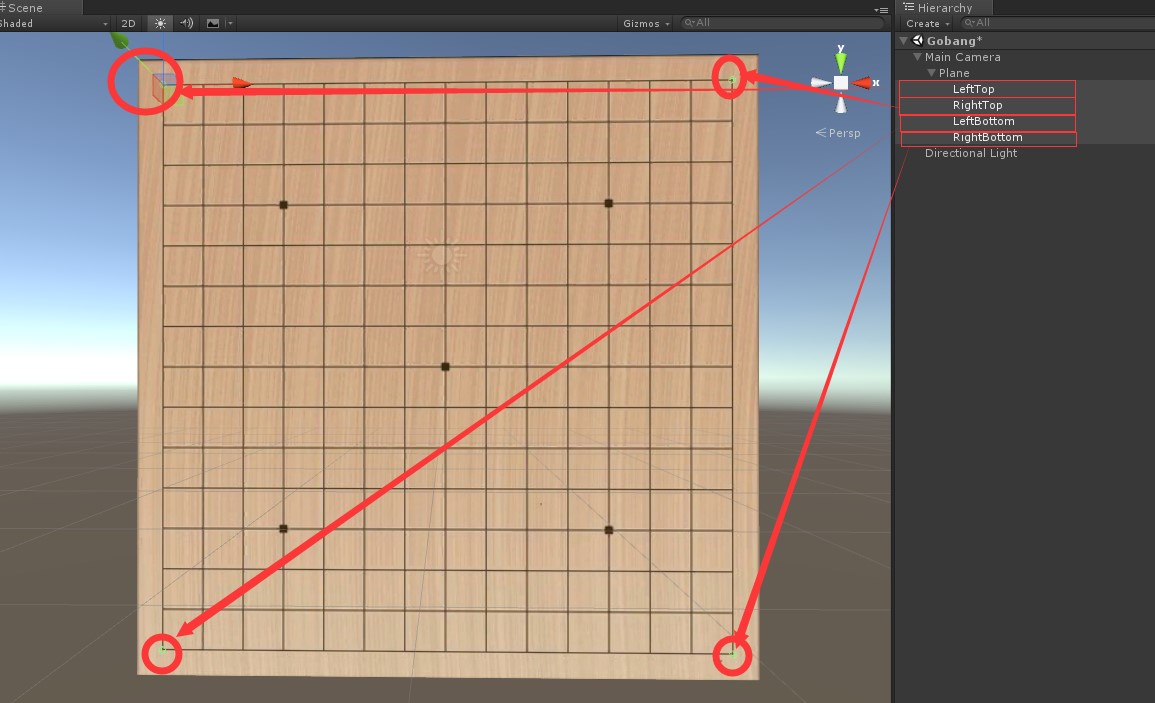

再创建四个sphere，作为Plane的子物体，分别命名为LeftTop、RightTop、LeftBottom、RightBottom。然后把他们的MeshRenderer勾选掉。这些球是为了计算棋子落点所设置的，所以需要把它们与棋盘的四个角点对准。

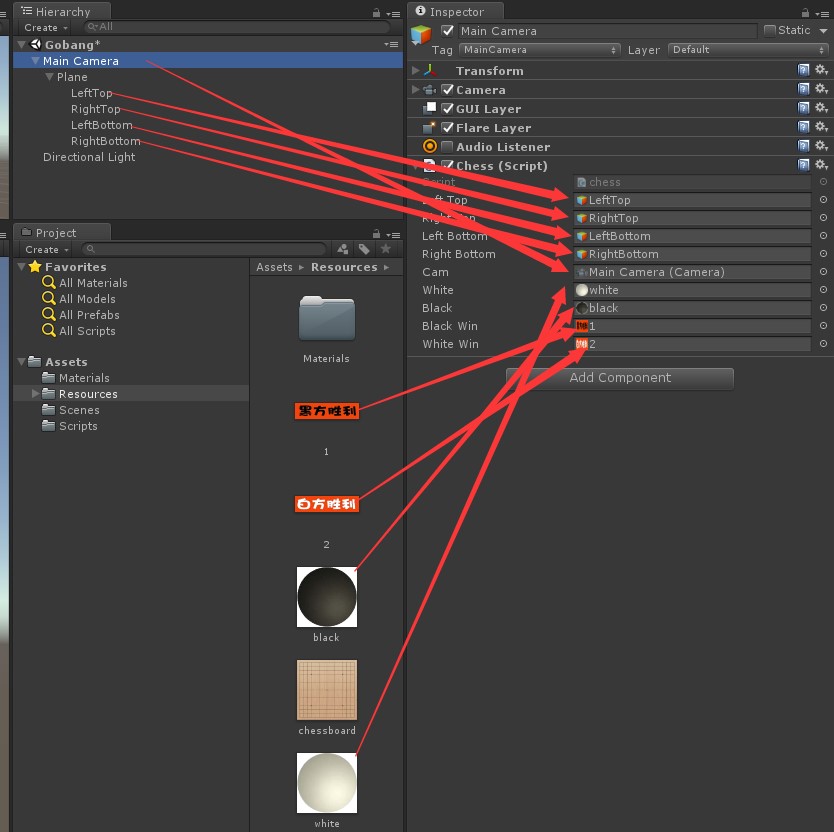

然后我们创建一个chess.cs脚本，绑定到MainCamera上。脚本中包含了所有的功能。需要绑定的一些物体如图所示。

chess.cs脚本如下：

using UnityEngine;
using System.Collections;

public class chess : MonoBehaviour {

	//四个锚点位置，用于计算棋子落点
	public GameObject LeftTop;
	public GameObject RightTop;
	public GameObject LeftBottom;
	public GameObject RightBottom;
	//主摄像机
	public Camera cam;
	//锚点在屏幕上的映射位置
	Vector3 LTPos;
	Vector3 RTPos;
	Vector3 LBPos;
	Vector3 RBPos;

	Vector3 PointPos;//当前点选的位置
	float gridWidth =1; //棋盘网格宽度
	float gridHeight=1; //棋盘网格高度
	float minGridDis;  //网格宽和高中较小的一个
	Vector2[,] chessPos; //存储棋盘上所有可以落子的位置
	int[,] chessState; //存储棋盘位置上的落子状态
	enum turn {black, white } ;
	turn chessTurn; //落子顺序
	public Texture2D white; //白棋子
	public Texture2D black; //黑棋子
	public Texture2D blackWin; //白子获胜提示图
	public Texture2D whiteWin; //黑子获胜提示图
	int winner = 0; //获胜方，1为黑子，-1为白子
	bool isPlaying = true; //是否处于对弈状态
	void Start () {
		chessPos = new Vector2[15, 15];
		chessState =new int[15,15];
		chessTurn = turn.black;

	}

	void Update () {

		//计算锚点位置
		LTPos = cam.WorldToScreenPoint(LeftTop.transform.position);
		RTPos = cam.WorldToScreenPoint(RightTop.transform.position);
		LBPos = cam.WorldToScreenPoint(LeftBottom.transform.position);
		RBPos = cam.WorldToScreenPoint(RightBottom.transform.position);
		//计算网格宽度
		gridWidth = (RTPos.x - LTPos.x) / 14;
		gridHeight = (LTPos.y - LBPos.y) / 14;
		minGridDis = gridWidth < gridHeight ? gridWidth : gridHeight;
		//计算落子点位置
		for (int i = 0; i < 15; i++)
		{
			for (int j = 0; j < 15; j++)
			{
				chessPos[i, j] = new Vector2(LBPos.x + gridWidth * i, LBPos.y + gridHeight * j);
			}
		}
		//检测鼠标输入并确定落子状态
		if (isPlaying && Input.GetMouseButtonDown(0))
		{
			PointPos = Input.mousePosition;
			for (int i = 0; i < 15; i++)
			{
				for (int j = 0; j < 15; j++)
				{
					//找到最接近鼠标点击位置的落子点，如果空则落子
					if (Dis(PointPos, chessPos[i, j]) < minGridDis / 2 && chessState[i,j]==0)
					{
						//根据下棋顺序确定落子颜色
						chessState[i, j] = chessTurn == turn.black ? 1 : -1;
						//落子成功，更换下棋顺序
						chessTurn = chessTurn == turn.black ? turn.white : turn.black;
					}
				}
			}
			//调用判断函数，确定是否有获胜方
			int re = result();
			if (re == 1)
			{
				Debug.Log("黑棋胜");
				winner = 1;
				isPlaying = false;
			}
			else if(re==-1)
			{
				Debug.Log("白棋胜");
				winner = -1;
				isPlaying = false;
			}
		}
		//按下空格重新开始游戏
		if (Input.GetKeyDown(KeyCode.Space))
		{
			for (int i = 0; i < 15; i++)
			{
				for (int j = 0; j < 15; j++)
				{
					chessState[i, j] = 0;
				}
			}
			isPlaying = true;
			chessTurn = turn.black;
			winner = 0;
		}
	}
	//计算平面距离函数
	float Dis(Vector3 mPos, Vector2 gridPos)
	{
		return Mathf.Sqrt(Mathf.Pow(mPos.x - gridPos.x, 2)+ Mathf.Pow(mPos.y - gridPos.y, 2));
	}

	void OnGUI()
	{
		//绘制棋子
		for(int i=0;i<15;i++)
		{
			for (int j = 0; j < 15; j++)
			{
				if (chessState[i, j] == 1)
				{
					GUI.DrawTexture(new Rect(chessPos[i,j].x-gridWidth/2, Screen.height-chessPos[i,j].y-gridHeight/2, gridWidth,gridHeight),black);
				}
				if (chessState[i, j] == -1)
				{
					GUI.DrawTexture(new Rect(chessPos[i, j].x - gridWidth / 2, Screen.height - chessPos[i, j].y - gridHeight / 2, gridWidth, gridHeight), white);
				}
			}
		}
		//根据获胜状态，弹出相应的胜利图片
		if (winner ==  1)
			GUI.DrawTexture(new Rect(Screen.width * 0.25f, Screen.height * 0.25f, Screen.width * 0.5f, Screen.height * 0.25f), blackWin);
		if (winner == -1)
			GUI.DrawTexture(new Rect(Screen.width * 0.25f, Screen.height * 0.25f, Screen.width * 0.5f, Screen.height * 0.25f), whiteWin);

	}
	//检测是够获胜的函数，不含黑棋禁手检测
	int result()
	{
		int flag = 0;
		//如果当前该白棋落子，标定黑棋刚刚下完一步，此时应该判断黑棋是否获胜
		if(chessTurn == turn.white)
		{
			for (int i = 0; i < 11; i++)
			{
				for (int j = 0; j < 15; j++)
				{
					if (j < 4)
					{
						//横向
						if (chessState[i, j] == 1 && chessState[i, j + 1] == 1 && chessState[i, j + 2] == 1 && chessState[i, j + 3] == 1 && chessState[i, j + 4] == 1)
						{
							flag = 1;
							return flag;
						}
						//纵向
						if (chessState[i, j] == 1 && chessState[i + 1, j] == 1 && chessState[i + 2, j] == 1 && chessState[i + 3, j] == 1 && chessState[i + 4, j] == 1)
						{
							flag = 1;
							return flag;
						}
						//右斜线
						if (chessState[i, j] == 1 && chessState[i + 1, j + 1] == 1 && chessState[i + 2, j + 2] == 1 && chessState[i + 3, j + 3] == 1 && chessState[i + 4, j + 4] == 1)
						{
							flag = 1;
							return flag;
						}
						//左斜线
						//if (chessState[i, j] == 1 && chessState[i + 1, j - 1] == 1 && chessState[i + 2, j - 2] == 1 && chessState[i + 3, j - 3] == 1 && chessState[i + 4, j - 4] == 1)
						//{
						//    flag = 1;
						//    return flag;
						//}
					}
					else if (j >= 4 && j < 11)
					{
						//横向
						if (chessState[i, j] == 1 && chessState[i, j + 1] == 1 && chessState[i, j + 2] == 1 && chessState[i, j + 3] == 1 && chessState[i, j + 4] == 1)
						{
							flag = 1;
							return flag;
						}
						//纵向
						if (chessState[i, j] == 1 && chessState[i + 1, j] == 1 && chessState[i + 2, j] == 1 && chessState[i + 3, j] == 1 && chessState[i + 4, j] == 1)
						{
							flag = 1;
							return flag;
						}
						//右斜线
						if (chessState[i, j] == 1 && chessState[i + 1, j + 1] == 1 && chessState[i + 2, j + 2] == 1 && chessState[i + 3, j + 3] == 1 && chessState[i + 4, j + 4] == 1)
						{
							flag = 1;
							return flag;
						}
						//左斜线
						if (chessState[i, j] == 1 && chessState[i + 1, j - 1] == 1 && chessState[i + 2, j - 2] == 1 && chessState[i + 3, j - 3] == 1 && chessState[i + 4, j - 4] == 1)
						{
							flag = 1;
							return flag;
						}
					}
					else
					{
						//横向
						//if (chessState[i, j] == 1 && chessState[i, j + 1] == 1 && chessState[i, j + 2] == 1 && chessState[i, j + 3] == 1 && chessState[i, j + 4] == 1)
						//{
						//    flag = 1;
						//    return flag;
						//}
						//纵向
						if (chessState[i, j] == 1 && chessState[i + 1, j] == 1 && chessState[i + 2, j] == 1 && chessState[i + 3, j] == 1 && chessState[i + 4, j] == 1)
						{
							flag = 1;
							return flag;
						}
						//右斜线
						//if (chessState[i, j] == 1 && chessState[i + 1, j + 1] == 1 && chessState[i + 2, j + 2] == 1 && chessState[i + 3, j + 3] == 1 && chessState[i + 4, j + 4] == 1)
						//{
						//    flag = 1;
						//    return flag;
						//}
						//左斜线
						if (chessState[i, j] == 1 && chessState[i + 1, j - 1] == 1 && chessState[i + 2, j - 2] == 1 && chessState[i + 3, j - 3] == 1 && chessState[i + 4, j - 4] == 1)
						{
							flag = 1;
							return flag;
						}
					}

				}
			}
			for (int i = 11; i < 15; i++)
			{
				for (int j = 0; j < 11; j++)
				{
					//只需要判断横向
					if (chessState[i, j] == 1 && chessState[i, j + 1] == 1 && chessState[i, j + 2] == 1 && chessState[i, j + 3] == 1 && chessState[i, j + 4] == 1)
					{
						flag = 1;
						return flag;
					}
				}
			}
		}
		//如果当前该黑棋落子，标定白棋刚刚下完一步，此时应该判断白棋是否获胜
		else if(chessTurn == turn.black)
		{
			for (int i = 0; i < 11; i++)
			{
				for (int j = 0; j < 15; j++)
				{
					if (j < 4)
					{
						//横向
						if (chessState[i, j] == -1 && chessState[i, j + 1] == -1 && chessState[i, j + 2] == -1 && chessState[i, j + 3] == -1 && chessState[i, j + 4] == -1)
						{
							flag = -1;
							return flag;
						}
						//纵向
						if (chessState[i, j] == -1 && chessState[i + 1, j] == -1 && chessState[i + 2, j] == -1 && chessState[i + 3, j] == -1 && chessState[i + 4, j] == -1)
						{
							flag = -1;
							return flag;
						}
						//右斜线
						if (chessState[i, j] == -1 && chessState[i + 1, j + 1] == -1 && chessState[i + 2, j + 2] == -1 && chessState[i + 3, j + 3] == -1 && chessState[i + 4, j + 4] == -1)
						{
							flag = -1;
							return flag;
						}
						//左斜线
						//if (chessState[i, j] == -1 && chessState[i + 1, j - 1] == -1 && chessState[i + 2, j - 2] == -1 && chessState[i + 3, j - 3] == -1 && chessState[i + 4, j - 4] == -1)
						//{
						//    flag = -1;
						//    return flag;
						//}
					}
					else if (j >= 4 && j < 11)
					{
						//横向
						if (chessState[i, j] == -1 && chessState[i, j + 1] == -1 && chessState[i, j + 2] == -1 && chessState[i, j + 3] == -1 && chessState[i, j + 4] ==- 1)
						{
							flag = -1;
							return flag;
						}
						//纵向
						if (chessState[i, j] == -1 && chessState[i + 1, j] == -1 && chessState[i + 2, j] == -1 && chessState[i + 3, j] == -1 && chessState[i + 4, j] == -1)
						{
							flag = -1;
							return flag;
						}
						//右斜线
						if (chessState[i, j] == -1 && chessState[i + 1, j + 1] == -1 && chessState[i + 2, j + 2] == -1 && chessState[i + 3, j + 3] == -1 && chessState[i + 4, j + 4] == -1)
						{
							flag = -1;
							return flag;
						}
						//左斜线
						if (chessState[i, j] == -1 && chessState[i + 1, j - 1] == -1 && chessState[i + 2, j - 2] == -1 && chessState[i + 3, j - 3] == -1 && chessState[i + 4, j - 4] == -1)
						{
							flag = -1;
							return flag;
						}
					}
					else
					{
						//横向
						//if (chessState[i, j] == -1 && chessState[i, j + 1] ==- 1 && chessState[i, j + 2] == -1 && chessState[i, j + 3] == -1 && chessState[i, j + 4] == -1)
						//{
						//    flag = -1;
						//    return flag;
						//}
						//纵向
						if (chessState[i, j] == -1 && chessState[i + 1, j] ==- 1 && chessState[i + 2, j] ==- 1 && chessState[i + 3, j] ==- 1 && chessState[i + 4, j] == -1)
						{
							flag = -1;
							return flag;
						}
						//右斜线
						//if (chessState[i, j] == -1 && chessState[i + 1, j + 1] == -1 && chessState[i + 2, j + 2] == -1 && chessState[i + 3, j + 3] == -1 && chessState[i + 4, j + 4] == -1)
						//{
						//    flag = -1;
						//    return flag;
						//}
						//左斜线
						if (chessState[i, j] == -1 && chessState[i + 1, j - 1] == -1 && chessState[i + 2, j - 2] == -1 && chessState[i + 3, j - 3] == -1 && chessState[i + 4, j - 4] == -1)
						{
							flag = -1;
							return flag;
						}
					}
				}
			}
			for (int i = 11; i < 15; i++)
			{
				for (int j = 0; j < 11; j++)
				{
					//只需要判断横向
					if (chessState[i, j] == -1 && chessState[i, j + 1] == -1 && chessState[i, j + 2] == -1 && chessState[i, j + 3] == -1 && chessState[i, j + 4] == -1)
					{
						flag = -1;
						return flag;
					}
				}
			}
		}
		return flag;
	}
}

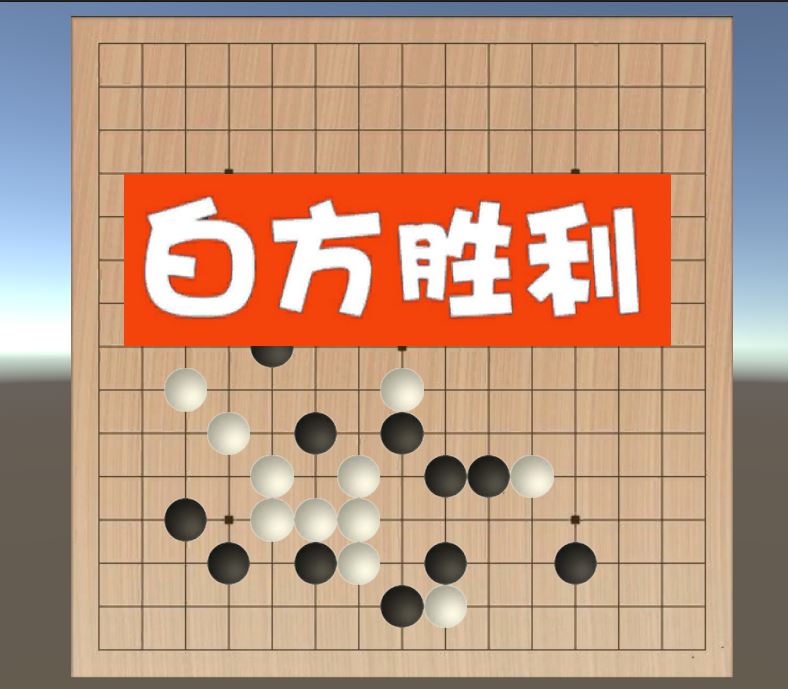

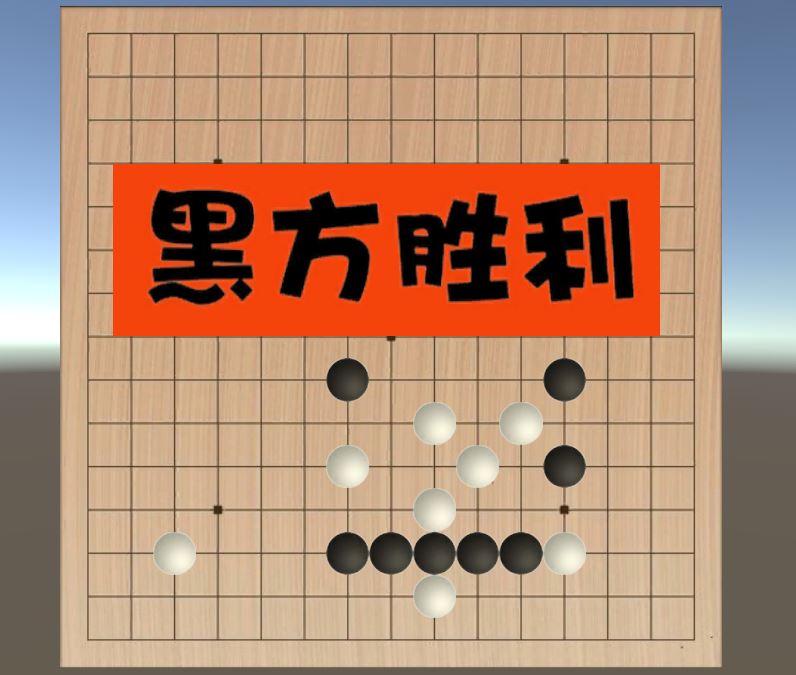

运行效果截图：

小结

本程序实现了五子棋的基本功能，纯属娱乐而作。暂时没有加入各种UI、网络模块等。本程序经过了简单的测试，没有什么问题，如果大家在使用的时候发现有什么Bug，请联系我改正，谢谢。

*************************************************************************************

下面是工程源码下载地址：

GitHub – zzlyw/Gobang_Tutorial
