Android 自定义流式布局

自定义流式布局

自定义流式布局，处理margin值，支持addView和XML布局。

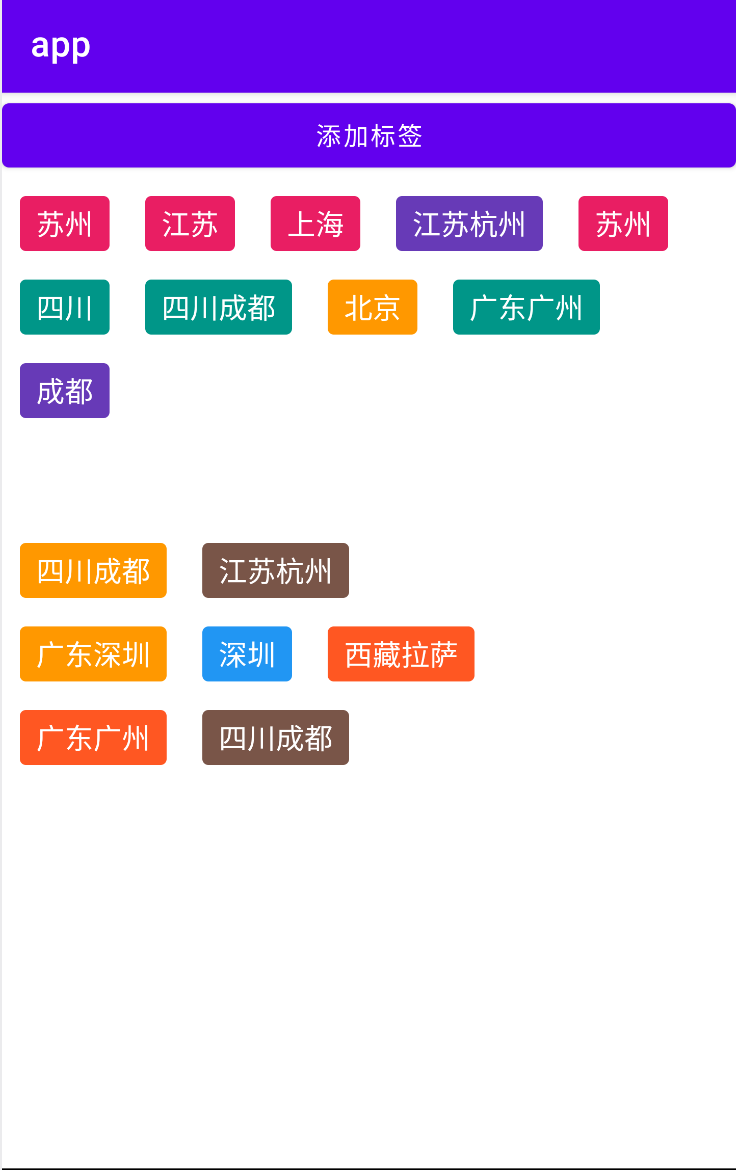

在这里插入图片描述

代码实现

public class TagLayout extends ViewGroup {
    private int horizontalSpace = dp2px(20); private int verticalSpace = dp2px(16); //所有子View private ArrayList<ArrayList<View>> allViewList = new ArrayList<>(); //存储每一行高度 private ArrayList<Integer> lineHeightList = new ArrayList<>(); public TagLayout(Context context) {
    super(context); } public TagLayout(Context context, AttributeSet attrs) {
    super(context, attrs); } public TagLayout(Context context, AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr); } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    allViewList.clear(); lineHeightList.clear(); //获取父View的模式和尺寸 int widthSize = MeasureSpec.getSize(widthMeasureSpec); int widthMode = MeasureSpec.getMode(widthMeasureSpec); //定义TagLayout已使用宽和高空间 int widthUsed = 0; int heightUsed = 0; //定义单行的宽的已使用空间 int lineWidthUsed = 0; //定义单行最大值 int lineMaxHeight = 0; //一行的子View ArrayList<View> lineViews = new ArrayList<>(); int childCount = getChildCount(); for (int i = 0; i < childCount; i++) {
    View childView = getChildAt(i); measureChildWithMargins(childView, widthMeasureSpec, 0, heightMeasureSpec, heightUsed); //换行 if (widthMode != MeasureSpec.UNSPECIFIED && getPaddingLeft() + getPaddingRight() + lineWidthUsed + childView.getMeasuredWidth() + horizontalSpace > widthSize) {
    allViewList.add(lineViews); lineHeightList.add(lineMaxHeight); lineViews = new ArrayList<>(); widthUsed = Math.max(widthUsed, lineWidthUsed); heightUsed += lineMaxHeight + verticalSpace; lineWidthUsed = 0; lineMaxHeight = 0; measureChildWithMargins(childView, widthMeasureSpec, 0, heightMeasureSpec, heightUsed); } lineViews.add(childView); lineWidthUsed += childView.getMeasuredWidth() + horizontalSpace; lineMaxHeight = Math.max(lineMaxHeight, childView.getMeasuredHeight()); //处理最后一行 if (i == childCount - 1) {
    allViewList.add(lineViews); lineHeightList.add(lineMaxHeight); widthUsed = Math.max(widthUsed, lineWidthUsed); heightUsed += lineMaxHeight; } } int selfWidth = widthUsed + getPaddingLeft() + getPaddingRight(); int selfHeight = heightUsed + getPaddingTop() + getPaddingBottom(); setMeasuredDimension(selfWidth, selfHeight); } @Override protected void onLayout(boolean changed, int l, int t, int r, int b) {
    int lineCount = allViewList.size(); int left = getPaddingLeft(); int top = getPaddingTop(); for (int i = 0; i < lineCount; i++) {
    ArrayList<View> lineViewList = allViewList.get(i); for (View childView : lineViewList) {
    int childLeft = left; int childTop = top; int childRight = childLeft + childView.getMeasuredWidth(); int childBottom = childTop + childView.getMeasuredHeight(); childView.layout(childLeft, childTop, childRight, childBottom); left = childRight + horizontalSpace; } int lineHeight = lineHeightList.get(i); top += lineHeight + verticalSpace; left = getPaddingLeft(); } } @Override protected LayoutParams generateDefaultLayoutParams() {
    return new MarginLayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT); } @Override public LayoutParams generateLayoutParams(AttributeSet attrs) {
    return new MarginLayoutParams(getContext(), attrs); } @Override protected LayoutParams generateLayoutParams(LayoutParams p) {
    return new MarginLayoutParams(p); } @Override protected boolean checkLayoutParams(LayoutParams p) {
    return p instanceof MarginLayoutParams; } public int dp2px(float dpValue) {
    float scale = Resources.getSystem().getDisplayMetrics().density; return (int) (dpValue * scale + 0.5f); } }
