android一个弹出菜单的动画(二)「建议收藏」

大家好，又见面了，我是全栈君。

假设做一个弹出的控件，我们能够进行加入view：

写class SatelliteMenu extends FrameLayout

private void init(Context context, AttributeSet attrs, int defStyle) {
		inflate(context, R.layout.sat_main, this);
		imgMain = (ImageView) findViewById(R.id.sat_main);

		if(attrs != null){
            TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.SatelliteMenu, defStyle, 0);
			satelliteDistance = typedArray.getDimensionPixelSize(R.styleable.SatelliteMenu_satelliteDistance, DEFAULT_SATELLITE_DISTANCE);
			totalSpacingDegree = typedArray.getFloat(R.styleable.SatelliteMenu_totalSpacingDegree, DEFAULT_TOTAL_SPACING_DEGREES);
			closeItemsOnClick = typedArray.getBoolean(R.styleable.SatelliteMenu_closeOnClick, DEFAULT_CLOSE_ON_CLICK);
			expandDuration = typedArray.getInt(R.styleable.SatelliteMenu_expandDuration, DEFAULT_EXPAND_DURATION);
			//float satelliteDistance = TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 170, getResources().getDisplayMetrics());
			typedArray.recycle();
		}


		mainRotateLeft = SatelliteAnimationCreator.createMainButtonAnimation(context);
		mainRotateRight = SatelliteAnimationCreator.createMainButtonInverseAnimation(context);

		Animation.AnimationListener plusAnimationListener = new Animation.AnimationListener() {
			@Override
			public void onAnimationStart(Animation animation) {
			}

			@Override
			public void onAnimationRepeat(Animation animation) {
			}

			@Override
			public void onAnimationEnd(Animation animation) {
				plusAnimationActive.set(false);
			}
		};

		mainRotateLeft.setAnimationListener(plusAnimationListener);
		mainRotateRight.setAnimationListener(plusAnimationListener);

		imgMain.setOnClickListener(new View.OnClickListener() {
			@Override
			public void onClick(View v) {
				SatelliteMenu.this.onClick();
			}
		});

		internalItemClickListener = new InternalSatelliteOnClickListener(this);
	}

<?
xml version="1.0" encoding="utf-8"?><merge xmlns:android="http://schemas.android.com/apk/res/android">        <ImageView        android:id="@+id/sat_main"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:src="@drawable/sat_main"         android:layout_gravity="bottom|left"         />        </merge><resources>	<declare-styleable name="SatelliteMenu">		<attr name="expandDuration" format="integer" />		<attr name="closeOnClick" format="boolean" />		<attr name="totalSpacingDegree" format="float" />		<attr name="satelliteDistance" format="dimension" />		<attr name="mainImage" format="reference" />			</declare-styleable></resources>

然后写加入Item的逻辑:

public void addItems(List<SatelliteMenuItem> items) {

		menuItems.addAll(items);
		this.removeView(imgMain);
		TextView tmpView = new TextView(getContext());
		tmpView.setLayoutParams(new FrameLayout.LayoutParams(0, 0));

		float[] degrees = getDegrees(menuItems.size());
		int index = 0;
		for (SatelliteMenuItem menuItem : menuItems) {
			int finalX = SatelliteAnimationCreator.getTranslateX(
					degrees[index], satelliteDistance);
			int finalY = SatelliteAnimationCreator.getTranslateY(
					degrees[index], satelliteDistance);
			ImageView itemView = (ImageView) LayoutInflater.from(getContext())
					.inflate(R.layout.sat_item_cr, this, false);
			ImageView cloneView = (ImageView) LayoutInflater.from(getContext())
					.inflate(R.layout.sat_item_cr, this, false);
			itemView.setTag(menuItem.getId());
			cloneView.setVisibility(View.GONE);
			itemView.setVisibility(View.GONE);

			cloneView.setOnClickListener(internalItemClickListener);
			cloneView.setTag(Integer.valueOf(menuItem.getId()));
			FrameLayout.LayoutParams layoutParams = getLayoutParams(cloneView);
			layoutParams.bottomMargin = Math.abs(finalY);
			layoutParams.leftMargin = Math.abs(finalX);
			cloneView.setLayoutParams(layoutParams);<strong>//这里是将cloneView置于itemview动画结束的位置</strong>

			if (menuItem.getImgResourceId() > 0) {
				itemView.setImageResource(menuItem.getImgResourceId());
				cloneView.setImageResource(menuItem.getImgResourceId());
			} else if (menuItem.getImgDrawable() != null) {
				itemView.setImageDrawable(menuItem.getImgDrawable());
				cloneView.setImageDrawable(menuItem.getImgDrawable());
			}

			Animation itemOut = SatelliteAnimationCreator.createItemOutAnimation(getContext(), index,expandDuration, finalX, finalY);
			Animation itemIn = SatelliteAnimationCreator.createItemInAnimation(getContext(), index, expandDuration, finalX, finalY);
			Animation itemClick = SatelliteAnimationCreator.createItemClickAnimation(getContext());

			menuItem.setView(itemView);
			menuItem.setCloneView(cloneView);
			menuItem.setInAnimation(itemIn);
			menuItem.setOutAnimation(itemOut);
			menuItem.setClickAnimation(itemClick);
			menuItem.setFinalX(finalX);
			menuItem.setFinalY(finalY);

			itemIn.setAnimationListener(new SatelliteAnimationListener(itemView, true, viewToItemMap));
			itemOut.setAnimationListener(new SatelliteAnimationListener(itemView, false, viewToItemMap));
			itemClick.setAnimationListener(new SatelliteItemClickAnimationListener(this, menuItem.getId()));

			this.addView(itemView);
			this.addView(cloneView);
			viewToItemMap.put(itemView, menuItem);
			viewToItemMap.put(cloneView, menuItem);
			index++;
		}

		this.addView(imgMain);
	}

监听器:

	private static class SatelliteAnimationListener implements Animation.AnimationListener {
		private WeakReference<View> viewRef;
		private boolean isInAnimation;
		private Map<View, SatelliteMenuItem> viewToItemMap;

		public SatelliteAnimationListener(View view, boolean isIn, Map<View, SatelliteMenuItem> viewToItemMap) {
			this.viewRef = new WeakReference<View>(view);
			this.isInAnimation = isIn;
			this.viewToItemMap = viewToItemMap;
		}

		@Override
		public void onAnimationStart(Animation animation) {
			if (viewRef != null) {
				View view = viewRef.get();
				if (view != null) {
					SatelliteMenuItem menuItem = viewToItemMap.get(view);
					if (isInAnimation) {
						menuItem.getView().setVisibility(View.VISIBLE);
						menuItem.getCloneView().setVisibility(View.GONE);
					} else {
						menuItem.getCloneView().setVisibility(View.GONE);
						menuItem.getView().setVisibility(View.VISIBLE);
					}
				}
			}
		}

		@Override
		public void onAnimationRepeat(Animation animation) {
		}

		@Override
		public void onAnimationEnd(Animation animation) {
			if (viewRef != null) {
				View view = viewRef.get();
				if (view != null) {
					SatelliteMenuItem menuItem = viewToItemMap.get(view);

					if (isInAnimation) {
						menuItem.getView().setVisibility(View.GONE);
						menuItem.getCloneView().setVisibility(View.GONE);
					} else {
						menuItem.getCloneView().setVisibility(View.VISIBLE);
						menuItem.getView().setVisibility(View.GONE);
					}
				}
			}
		}
	}

必须重写onMeature:

	private void recalculateMeasureDiff() {
		int itemWidth = 0;
		if (menuItems.size() > 0) {
			itemWidth = menuItems.get(0).getView().getWidth();
		}
		measureDiff = Float.valueOf(satelliteDistance * 0.2f).intValue()
				+ itemWidth;
	}


	@Override
	protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
		super.onMeasure(widthMeasureSpec, heightMeasureSpec);
		recalculateMeasureDiff();

		int totalHeight = imgMain.getHeight() + satelliteDistance + measureDiff;
		int totalWidth = imgMain.getWidth() + satelliteDistance + measureDiff;

		System.out.println("====totalWidth="+totalWidth+"height="+totalHeight+"measureDiff="+measureDiff+"imgMain.getWidth()="+imgMain.getWidth());
		setMeasuredDimension(totalWidth, totalHeight);
	}

save和恢复activity的状态:

@Override
	protected Parcelable onSaveInstanceState() {
		Parcelable superState = super.onSaveInstanceState();
		SavedState ss = new SavedState(superState);
		ss.rotated = rotated;
		ss.totalSpacingDegree = totalSpacingDegree;
		ss.satelliteDistance = satelliteDistance;
		ss.measureDiff = measureDiff;
		ss.expandDuration = expandDuration;
		ss.closeItemsOnClick = closeItemsOnClick;
		return ss;
	}

	@Override
	protected void onRestoreInstanceState(Parcelable state) {
		SavedState ss = (SavedState) state;
		rotated = ss.rotated;
		totalSpacingDegree = ss.totalSpacingDegree;
		satelliteDistance = ss.satelliteDistance;
		measureDiff = ss.measureDiff;
		expandDuration = ss.expandDuration;
		closeItemsOnClick = ss.closeItemsOnClick;

		super.onRestoreInstanceState(ss.getSuperState());
	}

	static class SavedState extends BaseSavedState {
		boolean rotated;
		private float totalSpacingDegree;
		private int satelliteDistance;
		private int measureDiff;
		private int expandDuration;
		private boolean closeItemsOnClick;

		SavedState(Parcelable superState) {
			super(superState);
		}

		public SavedState(Parcel in) {
			super(in);
			rotated = Boolean.valueOf(in.readString());
			totalSpacingDegree = in.readFloat();
			satelliteDistance = in.readInt();
			measureDiff = in.readInt();
			expandDuration = in.readInt();
			closeItemsOnClick = Boolean.valueOf(in.readString());
		}

		@Override
		public int describeContents() {
			return 0;
		}

		@Override
		public void writeToParcel(Parcel out, int flags) {
			out.writeString(Boolean.toString(rotated));
			out.writeFloat(totalSpacingDegree);
			out.writeInt(satelliteDistance);
			out.writeInt(measureDiff);
			out.writeInt(expandDuration);
			out.writeString(Boolean.toString(closeItemsOnClick));
		}

		public static final Parcelable.Creator<SavedState> CREATOR = new Parcelable.Creator<SavedState>() {
			public SavedState createFromParcel(Parcel in) {
				return new SavedState(in);
			}

			public SavedState[] newArray(int size) {
				return new SavedState[size];
			}
		};
	}

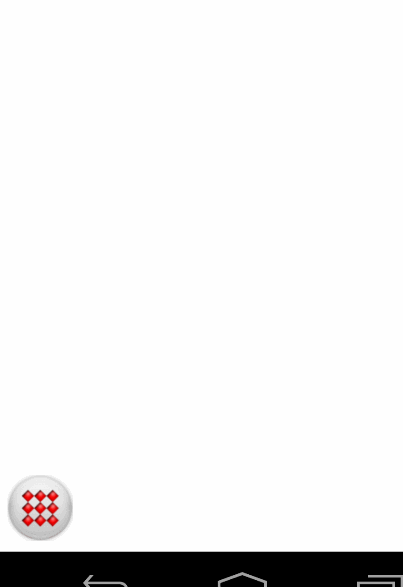

效果图:

android一个弹出菜单的动画(二)「建议收藏」
