MATLAB GUI表格（uitable）的增删操作

大家好，又见面了，我是你们的朋友全栈君。

这几天，查看了很多的MATLAB GUI 表格的操作，发现都没有一个完整的增删改的帖子。于是在我自己摸索下，自己搞出来了，增删操作。接下来就分享给大家！

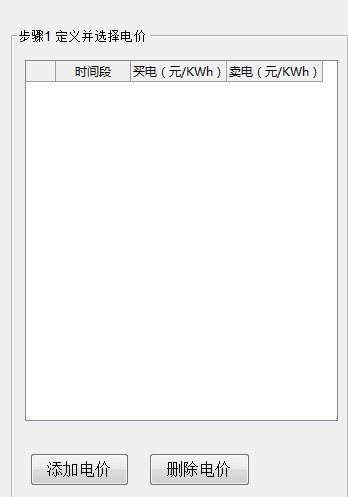

界面布局：

表格的tag： uitable1

添加电价的tag：addEle

删除电价的tag：delEle

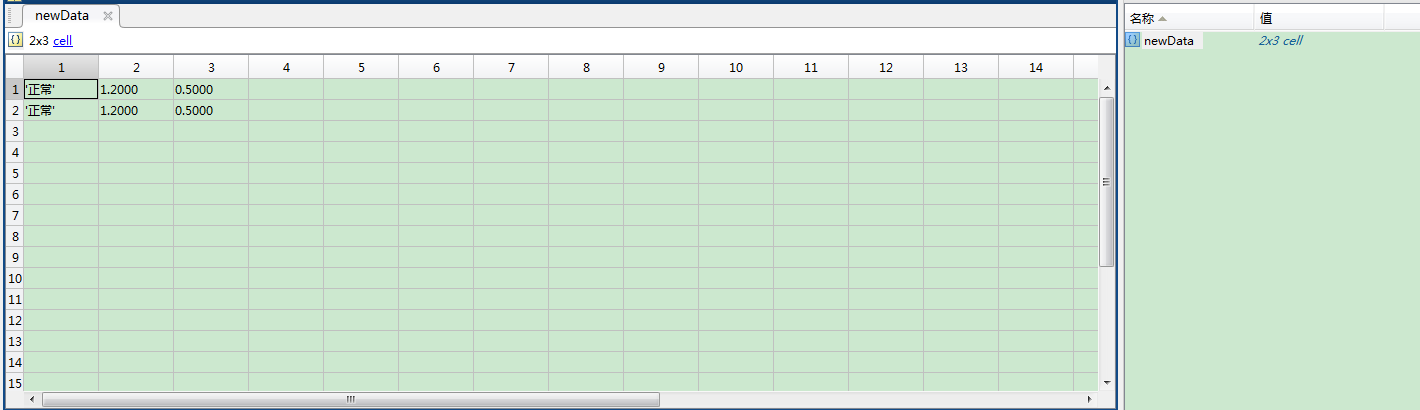

 首先建立一个 newData.mat，用于存放表格数据：

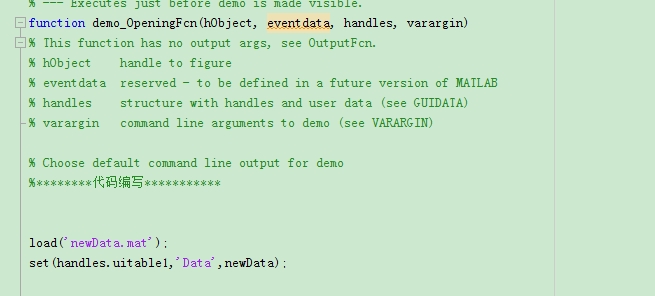

 在打开窗体的时候，加载 newData.mat 文件，并且显示：

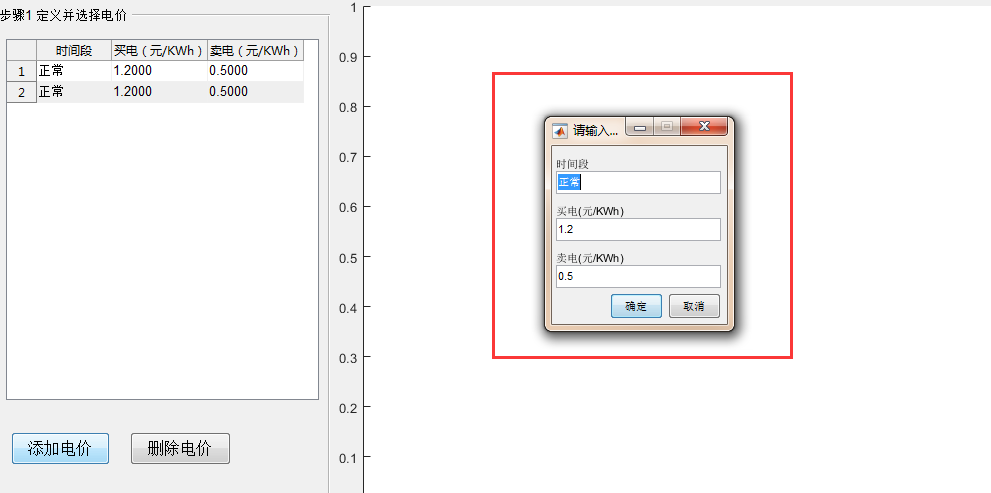

 添加数据，我是通过 对话框来实现的:

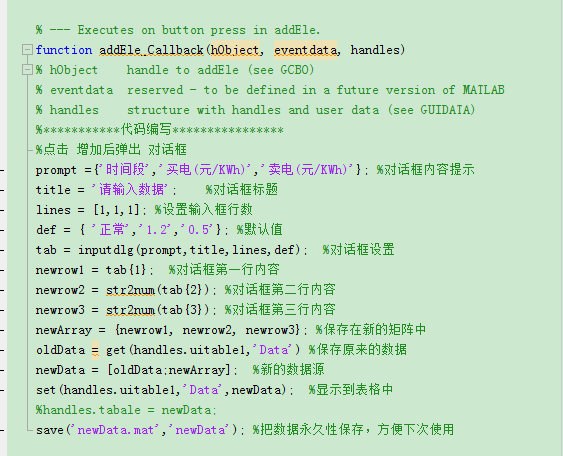

代码：

增加功能就完成了。接下来是删除功能：

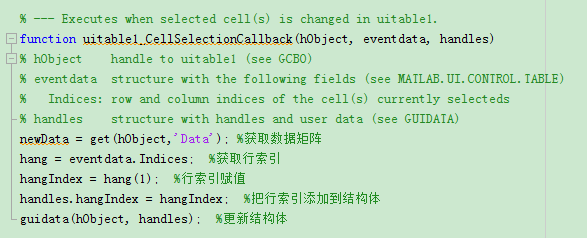

1.删除功能，需要用到 表格的一个回调函数 CellSelectionCallback:

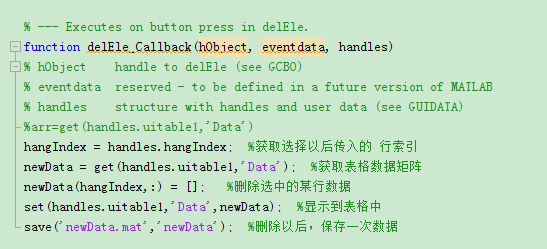

2.删除功能;

全部代码：

function varargout = demo(varargin)
% DEMO MATLAB code for demo.fig
%      DEMO, by itself, creates a new DEMO or raises the existing
%      singleton*.
%
%      H = DEMO returns the handle to a new DEMO or the handle to
%      the existing singleton*.
%
%      DEMO('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in DEMO.M with the given input arguments.
%
%      DEMO('Property','Value',...) creates a new DEMO or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before demo_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to demo_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help demo

% Last Modified by GUIDE v2.5 23-Sep-2018 10:31:19

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @demo_OpeningFcn, ...
                   'gui_OutputFcn',  @demo_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before demo is made visible.
function demo_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to demo (see VARARGIN)

% Choose default command line output for demo
%********代码编写***********


load('newData.mat');
set(handles.uitable1,'Data',newData);


%**************************************************
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes demo wait for user response (see UIRESUME)
% uiwait(handles.figure1);


function uitable1_CreateFcn(hObject, eventdata, handles, varargin)

handles.output = hObject;
guidata(hObject, handles);


% --- Outputs from this function are returned to the command line.
function varargout = demo_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in addEle.
function addEle_Callback(hObject, eventdata, handles)
% hObject    handle to addEle (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%***********代码编写****************
%点击 增加后弹出 对话框
prompt ={'时间段','买电(元/KWh)','卖电(元/KWh)'}; %对话框内容提示
title = '请输入数据';    %对话框标题
lines = [1,1,1]; %设置输入框行数
def = { '正常','1.2','0.5'}; %默认值
tab = inputdlg(prompt,title,lines,def);  %对话框设置
newrow1 = tab{1};  %对话框第一行内容
newrow2 = str2num(tab{2}); %对话框第二行内容
newrow3 = str2num(tab{3}); %对话框第三行内容
newArray = {newrow1, newrow2, newrow3}; %保存在新的矩阵中
oldData = get(handles.uitable1,'Data') %保存原来的数据
newData = [oldData;newArray];  %新的数据源
set(handles.uitable1,'Data',newData);  %显示到表格中
%handles.tabale = newData;
save('newData.mat','newData'); %把数据永久性保存，方便下次使用





% --- Executes on button press in delEle.
function delEle_Callback(hObject, eventdata, handles)
% hObject    handle to delEle (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%arr=get(handles.uitable1,'Data')
hangIndex = handles.hangIndex;  %获取选择以后传入的 行索引
newData = get(handles.uitable1,'Data');  %获取表格数据矩阵
newData(hangIndex,:) = [];   %删除选中的某行数据
set(handles.uitable1,'Data',newData);  %显示到表格中
save('newData.mat','newData');  %删除以后，保存一次数据


% --- Executes when selected cell(s) is changed in uitable1.
function uitable1_CellSelectionCallback(hObject, eventdata, handles)
% hObject    handle to uitable1 (see GCBO)
% eventdata  structure with the following fields (see MATLAB.UI.CONTROL.TABLE)
%	Indices: row and column indices of the cell(s) currently selecteds
% handles    structure with handles and user data (see GUIDATA)
newData = get(hObject,'Data'); %获取数据矩阵
hang = eventdata.Indices;  %获取行索引
hangIndex = hang(1);  %行索引赋值
handles.hangIndex = hangIndex;  %把行索引添加到结构体
guidata(hObject, handles);  %更新结构体
