场景：

1、两台服务器 ESXi1，ESXi2

2、两台SAN交换机 FC1，FC2

3、4台SAN存储：store1 and 2，store3 and 4：其中1和2，3和4分别做了级联，12和34之间做了双活。

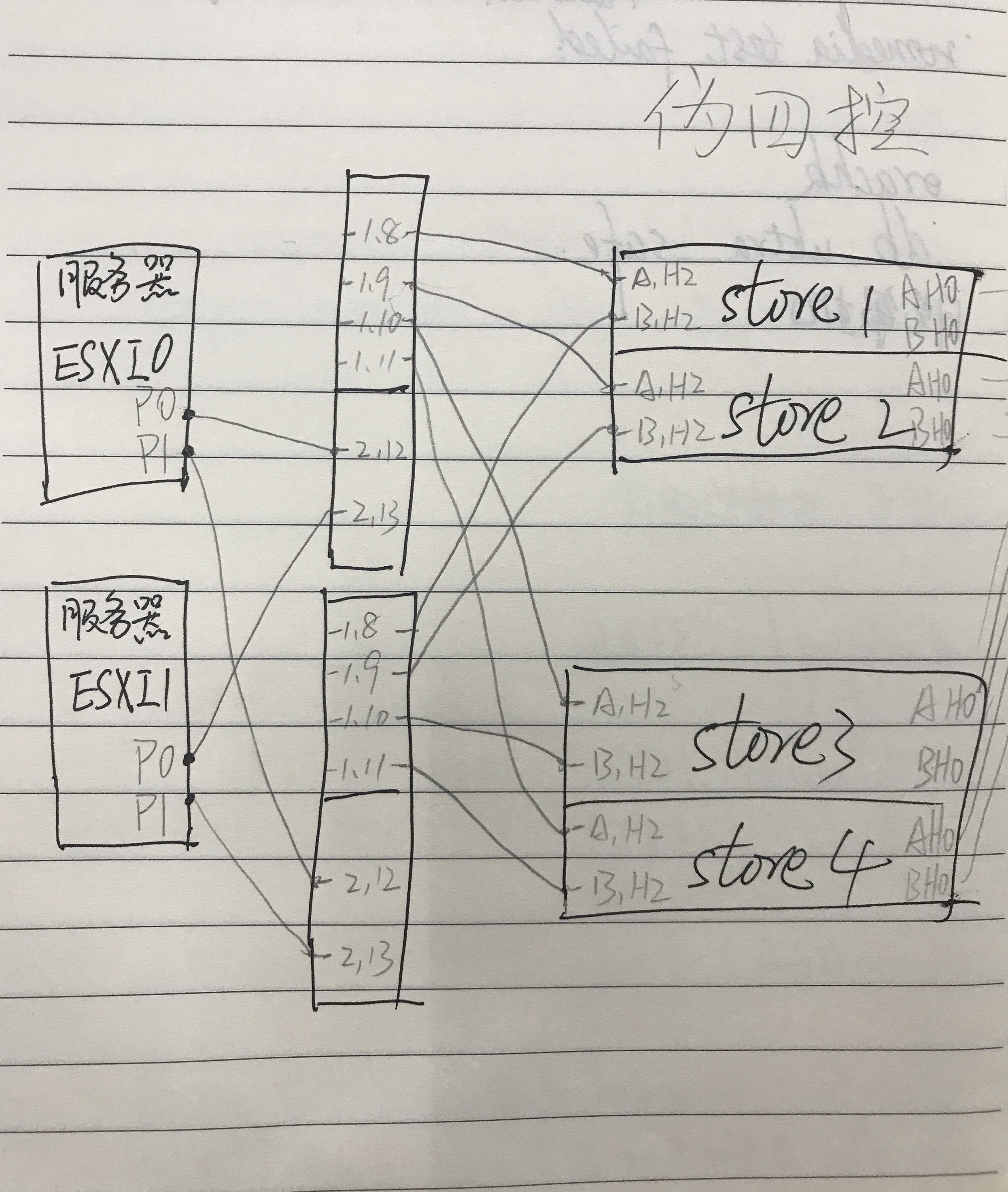

网络拓扑如图

san交换机保存配置_交换机是一种什么设备

FC交换机1
–创建zone
zonecreate “Stor1_A_H2_GSJ_ESXI1_P0″,”1,8;2,12” ：做端口绑定，将交换机上的1，8-1，11和2，12做zone1，8-1，11分别与4台存储的H2 FC端口连接，2，12与服务器上的P0端口连接。

zonecreate “Stor2_A_H2_GSJ_ESXI1_P0″,”1,9;2,12”
zonecreate “Stor3_A_H2_GSJ_ESXI1_P0″,”1,10;2,12”
zonecreate “Stor4_A_H2_GSJ_ESXI1_P0″,”1,11;2,12”
–将zone加入到配置文件
cfgadd “zone_configure”,”Stor1_A_H2_GSJ_ESXI1_P0″
cfgadd “zone_configure”,”Stor2_A_H2_GSJ_ESXI1_P0″
cfgadd “zone_configure”,”Stor3_A_H2_GSJ_ESXI1_P0″
cfgadd “zone_configure”,”Stor4_A_H2_GSJ_ESXI1_P0″
zonecreate “Stor1_A_H2_GSJ_ESXI2_P0″,”1,8;2,13”
zonecreate “Stor2_A_H2_GSJ_ESXI2_P0″,”1,9;2,13”
zonecreate “Stor3_A_H2_GSJ_ESXI2_P0″,”1,10;2,13”
zonecreate “Stor4_A_H2_GSJ_ESXI2_P0″,”1,11;2,13”
cfgadd “zone_configure”,”Stor1_A_H2_GSJ_ESXI2_P0″
cfgadd “zone_configure”,”Stor2_A_H2_GSJ_ESXI2_P0″
cfgadd “zone_configure”,”Stor3_A_H2_GSJ_ESXI2_P0″
cfgadd “zone_configure”,”Stor4_A_H2_GSJ_ESXI2_P0″

保存配置文件
cfgsave
使配置文件生效
cfgenable zone_configure

FC交换机2

zonecreate “Stor1_B_H2_GSJ_ESXI1_P1″,”1,8;2,12”
zonecreate “Stor2_B_H2_GSJ_ESXI1_P1″,”1,9;2,12”
zonecreate “Stor3_B_H2_GSJ_ESXI1_P1″,”1,10;2,12”
zonecreate “Stor4_B_H2_GSJ_ESXI1_P1″,”1,11;2,12”
cfgadd “zone_configure”,”Stor1_B_H2_GSJ_ESXI1_P1″
cfgadd “zone_configure”,”Stor2_B_H2_GSJ_ESXI1_P1″
cfgadd “zone_configure”,”Stor3_B_H2_GSJ_ESXI1_P1″
cfgadd “zone_configure”,”Stor4_B_H2_GSJ_ESXI1_P1″
zonecreate “Stor1_B_H2_GSJ_ESXI2_P1″,”1,8;2,13”
zonecreate “Stor2_B_H2_GSJ_ESXI2_P1″,”1,9;2,13”
zonecreate “Stor3_B_H2_GSJ_ESXI2_P1″,”1,10;2,13”
zonecreate “Stor4_B_H2_GSJ_ESXI2_P1″,”1,11;2,13”
cfgadd “zone_configure”,”Stor1_B_H2_GSJ_ESXI2_P1″
cfgadd “zone_configure”,”Stor2_B_H2_GSJ_ESXI2_P1″
cfgadd “zone_configure”,”Stor3_B_H2_GSJ_ESXI2_P1″
cfgadd “zone_configure”,”Stor4_B_H2_GSJ_ESXI2_P1″
cfgsave
cfgenable zone_configure
