我的RTOS 之六 — Touch移植(s5pv210+threadx+ucgui+touch)「建议收藏」

非常久没有关注RTOS了，所以也一直没有更新。近期闲了，把GPIO I2C调通了。简单移植了Touch。在S5PV210上使用。

调试I2C时。废了非常多周折，最后借助示波器才发现一个小小的错误。折腾了非常久非常久。

简要说下步骤：

1、首先I2C驱动，使用GPIO I2C的方式

#include <stdio.h>
#include <touch.h>

#define DELAY  10

#define SDA 0
#define SCL 1

#define 	GPD1CON 	(*(volatile unsigned long *) 0xE02000C0)
#define 	GPD1DAT		(*(volatile unsigned long *) 0xE02000C4)
#define 	GPD1PUD		(*(volatile unsigned long *) 0xE02000C8)
#define 	GPD1DRV		(*(volatile unsigned long *) 0xE02000CC)



#define SDA2_SET_INPUT (GPD1CON &= ~(0xf<<16))
#define SDA2_SET_OUTPUT (GPD1CON = (GPD1CON & (~(0x0f<<16))) | (0x1<<16))
#define SCL2_SET_INPUT (GPD1CON &= ~(0xf<<20));
#define SCL2_SET_OUTPUT (GPD1CON = (GPD1CON & (~(0x0f<<20))) | (0x1<<20))

#define SDA2_SET_VALUE(x) (GPD1DAT = (GPD1DAT & ~(1<<4)) | (x << 4))
#define SCL2_SET_VALUE(x) (GPD1DAT = (GPD1DAT & ~(1<<5)) | (x << 5))

#define SDA2_GET_VALUE ((GPD1DAT & (1<<4)) > 0 ? 1:0)
#define SCL2_GET_VALUE ((GPD1DAT & (1<<5)) > 0 ?
 1:0)void gpio_i2c_init(void){	GPD1DRV = (GPD1DRV & ~(0x5 << 10) | (0x5 << 10));	GPD1PUD = (GPD1DRV & ~(0xf << 10) | 0xa << 10);	SCL2_SET_OUTPUT;	SDA2_SET_OUTPUT;	SDA2_SET_VALUE(1);	SCL2_SET_VALUE(1);		}void i2c_start(void){	  	SCL2_SET_OUTPUT;	SDA2_SET_OUTPUT;	SDA2_SET_VALUE(1);	SCL2_SET_VALUE(1);		udelay(DELAY);		SDA2_SET_VALUE(0);	udelay(DELAY);        	  	SCL2_SET_VALUE(0);	udelay(DELAY);}void i2c_stop(void){ 	SCL2_SET_OUTPUT;	SDA2_SET_OUTPUT;	SDA2_SET_VALUE(0);	SCL2_SET_VALUE(0);	udelay(DELAY);    	SCL2_SET_VALUE(1);	udelay(DELAY);	SDA2_SET_VALUE(1);	udelay(DELAY);}void i2c_send_ack(unsigned char ack){	SCL2_SET_OUTPUT;	SDA2_SET_OUTPUT;		if(ack)		SDA2_SET_VALUE(1); 	else 		SDA2_SET_VALUE(0); 	udelay(DELAY);		SCL2_SET_VALUE(1);   	udelay(DELAY);   		SCL2_SET_VALUE(0);	udelay(DELAY);	}char i2c_receive_ack(void){	char rc = 0;		SCL2_SET_OUTPUT;	SDA2_SET_INPUT;		SCL2_SET_VALUE(1);	udelay(DELAY);		if(SDA2_GET_VALUE) {		rc = 1;	}	SCL2_SET_VALUE(0);	SDA2_SET_OUTPUT;	SDA2_SET_VALUE(1);					return rc;}unsigned char i2c_send_byte(unsigned char send_byte){	unsigned char rc = 0;	unsigned char out_mask = 0x80;	unsigned char value;	unsigned char count = 8;		SDA2_SET_OUTPUT;	SCL2_SET_OUTPUT;		while(count > 0) {                		value = ((send_byte & out_mask) ?
 1 : 0);   		if (value == 1) {    					      					SDA2_SET_VALUE(1);     		}    		else {      					     				SDA2_SET_VALUE(0);     		}    		udelay(DELAY);		                          		SCL2_SET_VALUE(1);   		    		udelay(DELAY);		             		SCL2_SET_VALUE(0);   		udelay(DELAY);		          		out_mask >>= 1;      		count--;       	}		SDA2_SET_VALUE(1);     	rc = i2c_receive_ack();	return rc;}void i2c_read_byte(unsigned char *buffer, unsigned char ack){	unsigned char count = 0x08;	unsigned char data = 0x00;	unsigned char temp = 0;		SDA2_SET_INPUT; 	SCL2_SET_OUTPUT;		while(count > 0) {		SCL2_SET_VALUE(1);		udelay(DELAY);		temp = SDA2_GET_VALUE;    			data <<= 1;		if (temp)			data |= 0x01;		SCL2_SET_VALUE(0);		udelay(DELAY);		count--;    }	i2c_send_ack(ack);//0 = ACK    1 = NACK	*buffer = data;			}int gpio_i2c_master_send(unsigned int SlaveAddr, unsigned char *Data, unsigned int length){	unsigned int i, j;	int rc;		SlaveAddr = (SlaveAddr << 1) & ~0x01;		i2c_start();	rc = i2c_send_byte(SlaveAddr);	if(rc){		printf("i2c_send_byte no ack 1\n");		return -1;	}	for(j = 0; j < length; j++)	{	rc = i2c_send_byte(Data[j]);//发送data	if(rc){			printf("i2c_send_byte no ack 2\n");			return -1;		}		}	i2c_stop();//停止信号	udelay(10);	return 0;}int gpio_i2c_master_recv(unsigned int SlaveAddr, unsigned char *Data, unsigned int length){	unsigned int i, j;	unsigned int data;	int rc;	SlaveAddr = (SlaveAddr << 1) | 0x01;			i2c_start();	rc = i2c_send_byte(SlaveAddr);	if(rc) {		printf("i2c_read_byte no ack 1\n");		return -1;	}	for(j=0; j<length; j++){		i2c_read_byte(Data++, !(length - j -1));//读取数据;	}	i2c_stop();//停止信号	return length;}int i2c_read_data(unsigned int SlaveAddr, 	char *reg, unsigned char *values, int length){	int ret;	int count = 0;retry:	/* select register*/	ret = gpio_i2c_master_send(SlaveAddr, reg , 1);	if (ret < 0) {		udelay(DELAY * 2);		if (++count < 2)			goto retry;		return ret;	}	/* for setup tx transaction. */	udelay(DELAY);	ret = gpio_i2c_master_recv(SlaveAddr,  values , length);	if (ret < 0)		return ret;	udelay(DELAY);	return length;}

2、Touch驱动

Touch IC为 FT5406, slave地址为0x70.

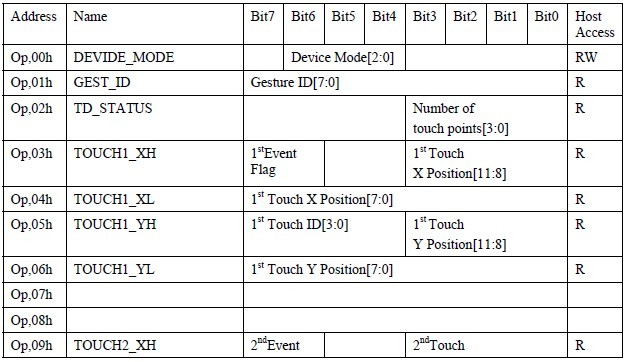

借助博友的一页芯片资料，写了最简单的单点读取：

多点也非常easy。能够參考android 多点触控协议上报点

#include <touch.h>
#include <exception.h>

struct touch_data touch_data;

int touch_irq()
{
	int i;
	int num = 0;
	int x, y;
	char reg[1] = {0};
	unsigned char buf[10];

	i2c_read_data(0x38, reg, buf, 7);

	if((num = (buf[2] & 0x0f)) == 0)
	{
		if(touch_data.isPress)
		{
			touch_data.isPress = 0;
			touch_data.x = -1;
			touch_data.y = -1;
			touch_event(touch_data.x, touch_data.y);
		}
		//printf("release\r\n");
		return 0;
	}
	x = (buf[3]&0x0f) << 8 | buf[4];
	y = (buf[5]&0x0f) << 8 | buf[6];
	//printf("num:%d, x:%d, y:%d\r\n", num, x, y);
	touch_data.x		= x;
	touch_data.y		= y;
	if(touch_data.isPress  == 0)
		touch_data.isPress  = 1;
	touch_event(touch_data.x, touch_data.y);
	return 0;
}

void touch_init(void)
{
	unsigned char uc_reg_value;
	unsigned char uc_reg_addr;
	unsigned char buf[1];
	unsigned char dst[1];

	touch_int_setup();

	i2c_read_data(0x38, buf, dst, 1);
	printf("touch fw:0x%x\r\n", dst[0]);
	buf[0] = 0x88;
	i2c_read_data(0x38, buf, dst, 1);
	printf("report rate:0x%x\r\n", dst[0] * 10);
	buf[0] = 0x80;
	i2c_read_data(0x38, buf, dst, 1);
	printf("touch threshold:0x%x\r\n", dst[0] * 4);

	intc_enable(NUM_EINT14);
}

在touch_init 初始化中可以取到touch固件信息。就说明
i2c通信正常了。

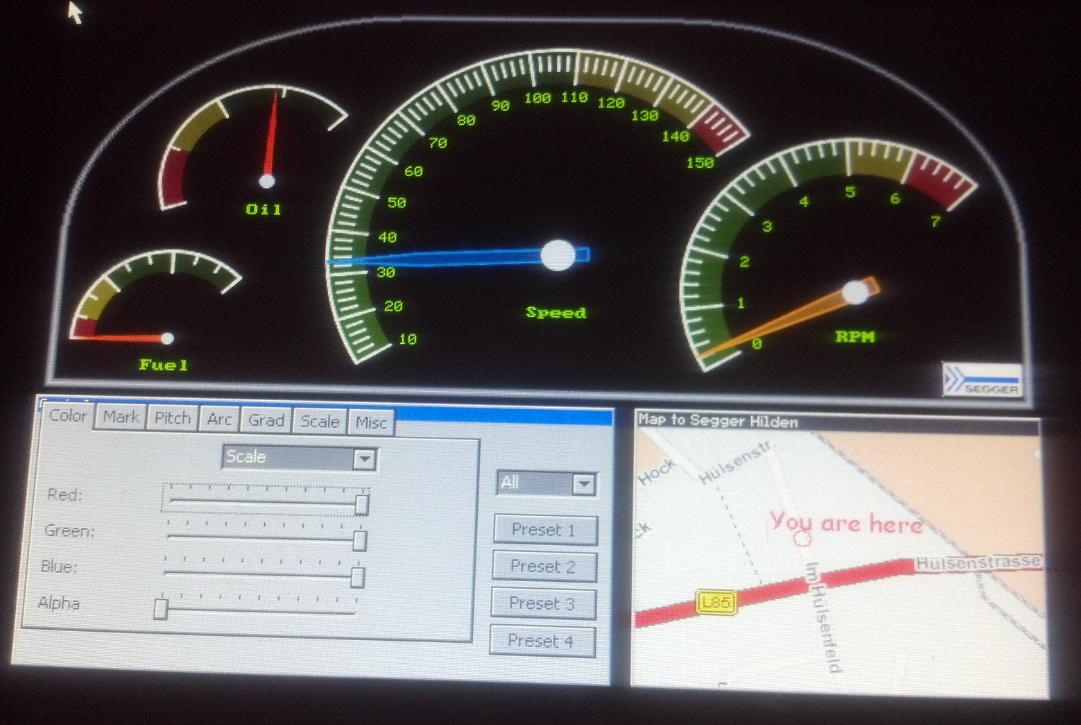

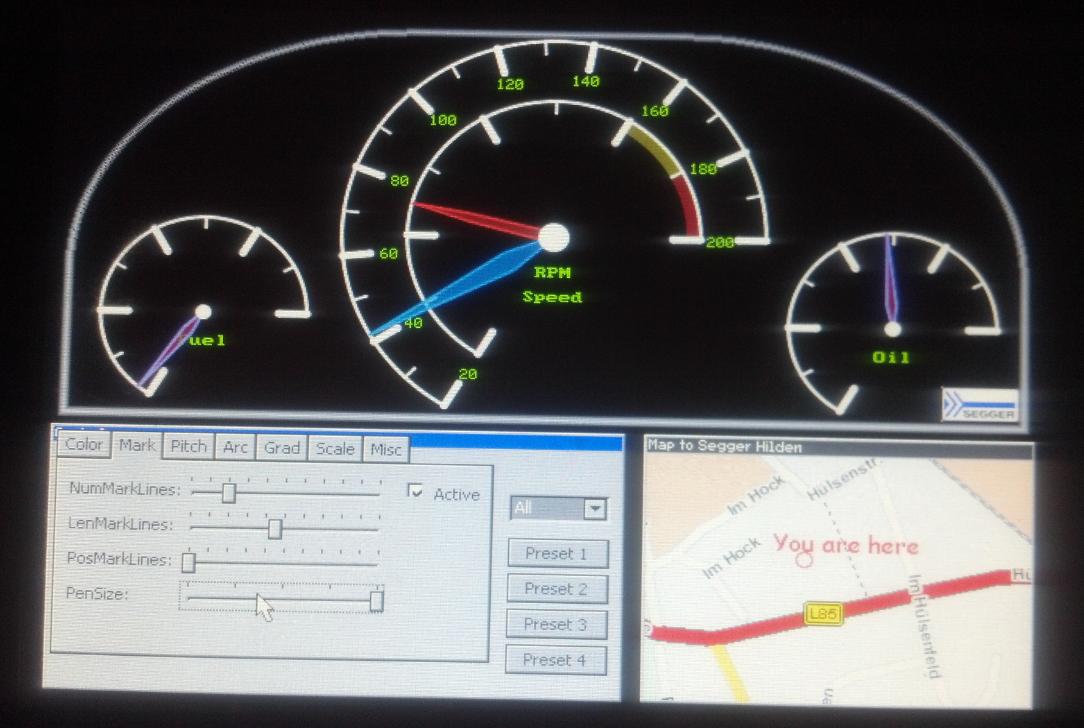

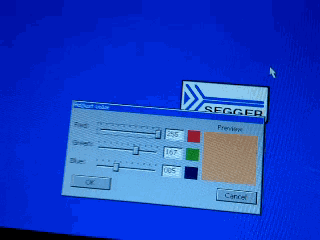

3、看下效果^^

最后两张的动画比較卡。

4:、存在问题及缺点

因为是电容屏，中断出发，触摸的时候。会不停的上报中断，会导致其它线程block。发生卡顿的情况，尤其画面比較复杂的时候。后期能够採取查询的方法，放在单独的线程其中或者减少touch的报点率；

另外就是lcd仅仅有一层framebuffer，多层显示倒是ucgui的效率低下，后期优化能够同一时候打开至少两个framebuffer。

5、源代码

http://download.csdn.net/detail/liujia2100/8859911

后期尝试移植lwip，搭配arduino。物联网^^.
