cocos2d3.0 Scale9Sprite

使用Scale9Sprite须要引入以下的头文件

#include "extensions/cocos-ext.h"


USING_NS_CC;
USING_NS_CC_EXT;

一、S9BatchNodeBasic

bool HelloWorld::init()
{
    //////////////////////////////
    // 1. super init first
    if ( !Layer::init() )
    {
        return false;
    }

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();


    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;

    auto batchNode = SpriteBatchNode::create("blocks9.png");

    auto blocks = Scale9Sprite::create();
    log("------created");

    blocks->updateWithBatchNode(batchNode, Rect(0, 0, 96, 96), false, Rect(0, 0, 96, 96));

    blocks->setPosition(Point(x, y));

    this->addChild(blocks);
    return true;
}

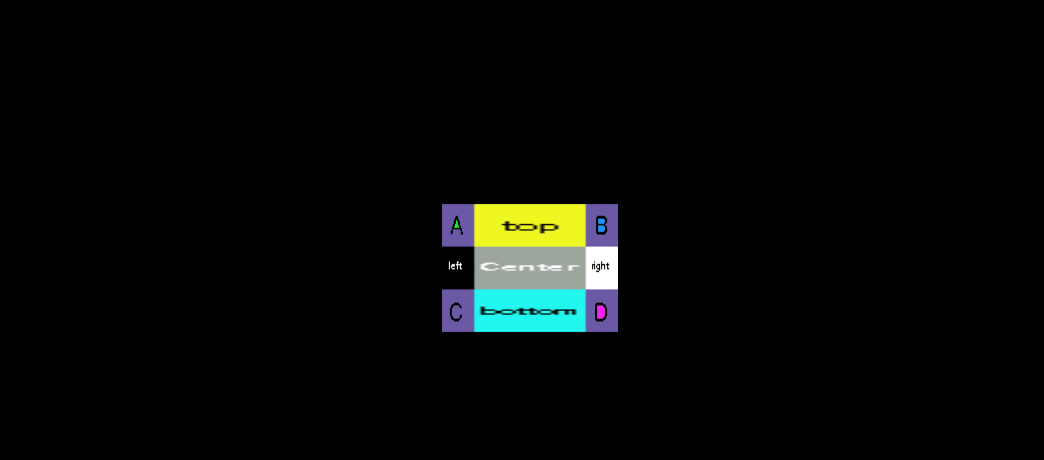

效果：

二、
S9FrameNameSpriteSheet

bool HelloWorld::init()
{
    //////////////////////////////
    // 1. super init first
    if ( !Layer::init() )
    {
        return false;
    }

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("blocks9ss.plist");
    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;

    auto blocks = Scale9Sprite::createWithSpriteFrameName("blocks9.png");

    blocks->setPosition(Point(x, y));

    this->addChild(blocks);


    return true;
}

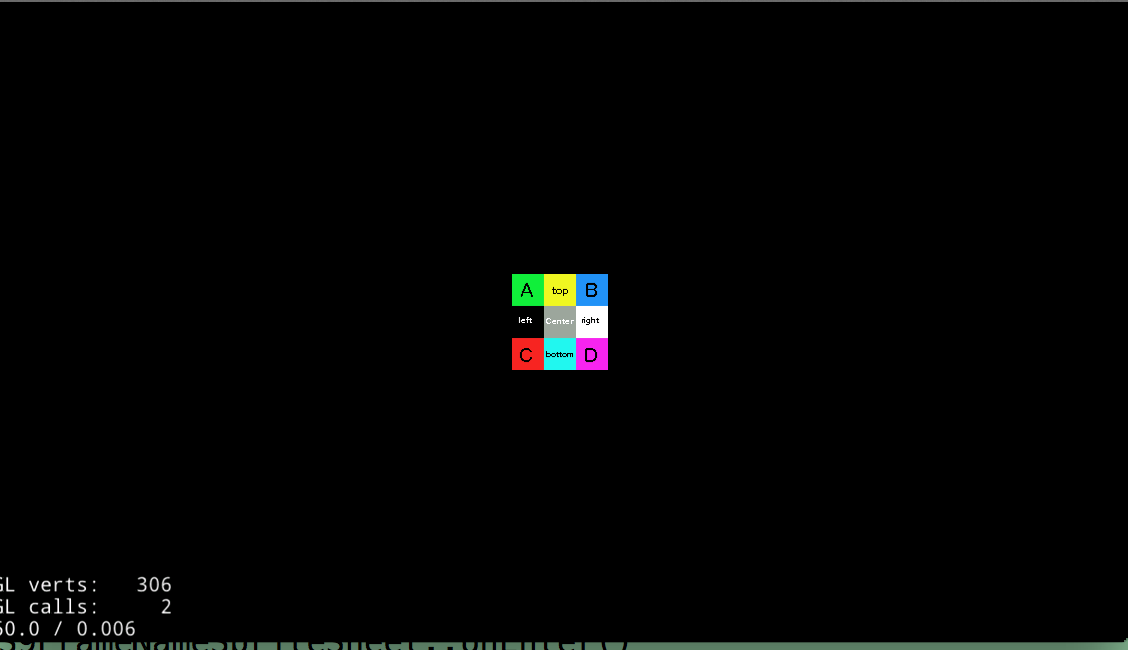

效果：

三、
S9BatchNodeScaledNoInsets 设置精灵的大小

bool HelloWorld::init()
{
    //////////////////////////////
    // 1. super init first
    if ( !Layer::init() )
    {
        return false;
    }

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("blocks9ss.plist");
    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;

    auto batchNode_scaled = SpriteBatchNode::create("blocks9.png");

    auto block_scaled = Scale9Sprite::create();

    block_scaled->updateWithBatchNode(batchNode_scaled, Rect(0, 0, 96, 96), false, Rect(0, 0, 96, 96));

    block_scaled->setPosition(Point(x, y));

    block_scaled->setContentSize(Size(96 * 4, 96 * 2));

    this->addChild(block_scaled);



    return true;
}

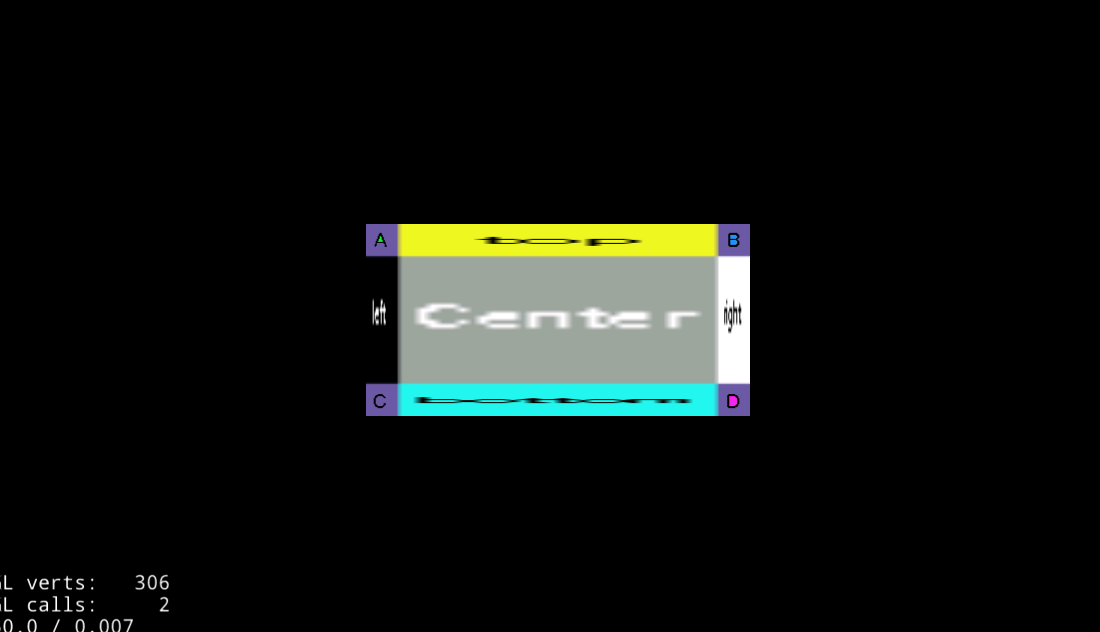

效果：

四、
S9FrameNameSpriteSheetRotatedScaledNoInsets

  auto block_scaled = Scale9Sprite::createWithSpriteFrameName("blocks9.png");


    block_scaled->setPosition(Point(x, y));

    block_scaled->setContentSize(Size(96 * 4, 96 * 2));

    this->addChild(block_scaled);

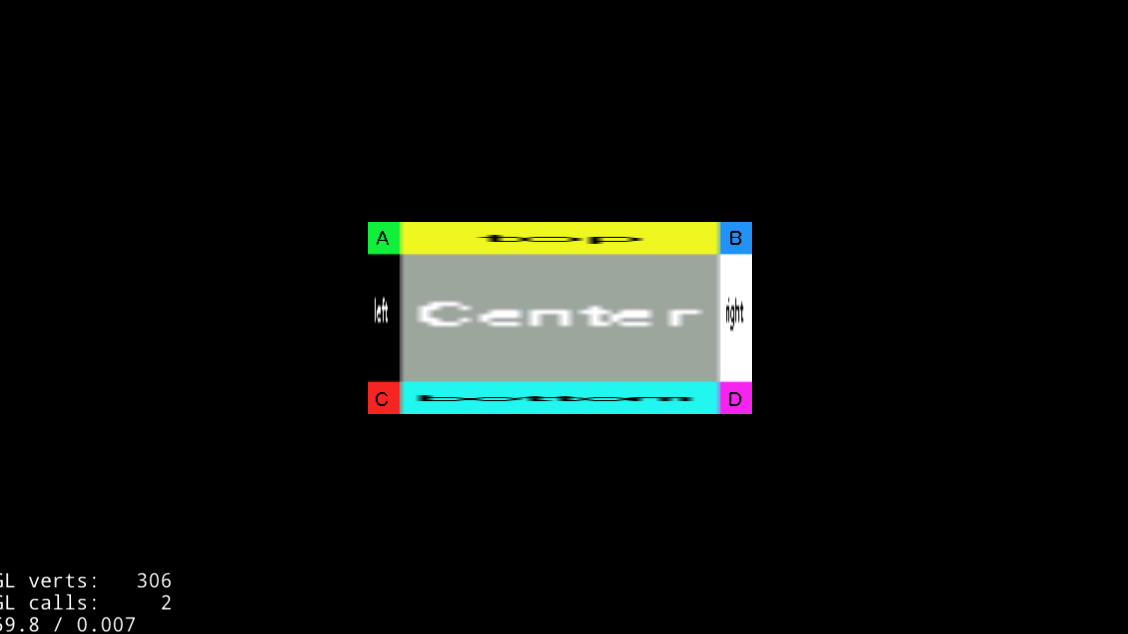

效果：

五、
S9FrameNameSpriteSheetRotatedScaledNoInsets

    auto block_scaled = Scale9Sprite::createWithSpriteFrameName("blocks9r.png");


    block_scaled->setPosition(Point(x, y));

    block_scaled->setContentSize(Size(96 * 4, 96 * 2));

    this->addChild(block_scaled);

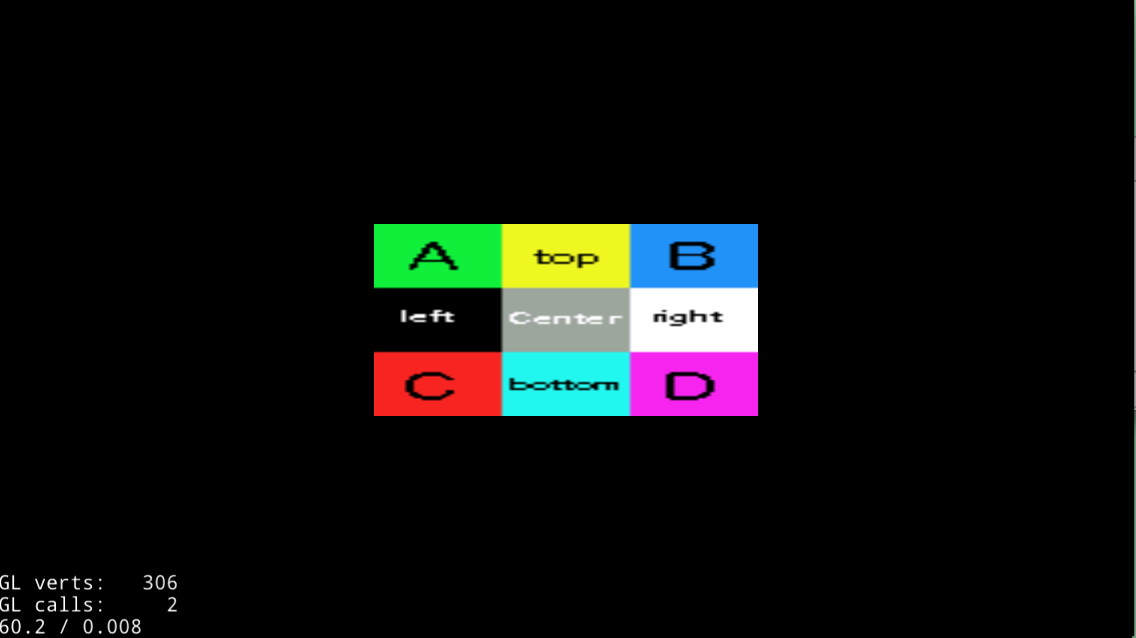

效果：

S9FrameNameSpriteSheetInsets

    auto batchNode_scaled_with_insets = SpriteBatchNode::create("blocks9.png");

    auto blocks_scaled_with_insets = Scale9Sprite::create();

    blocks_scaled_with_insets->updateWithBatchNode(batchNode_scaled_with_insets, Rect(0, 0, 96, 96), false, Rect(32, 32, 32, 32));

    blocks_scaled_with_insets->setContentSize(Size(96 * 4.5, 96 * 2.5));

    blocks_scaled_with_insets->setPosition(Point(x, y));

    this->addChild(blocks_scaled_with_insets);

cocos2d3.0 Scale9Sprite

S9FrameNameSpriteSheetInsetsScaled

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("blocks9ss.plist");
    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;


    auto blocks_scaled_with_insets = Scale9Sprite::createWithSpriteFrameName("blocks9.png",Rect(32, 32, 32, 32));



    blocks_scaled_with_insets->setContentSize(Size(96 * 4.5, 96 * 2.5));

    blocks_scaled_with_insets->setPosition(Point(x, y));

    this->addChild(blocks_scaled_with_insets);

cocos2d3.0 Scale9Sprite

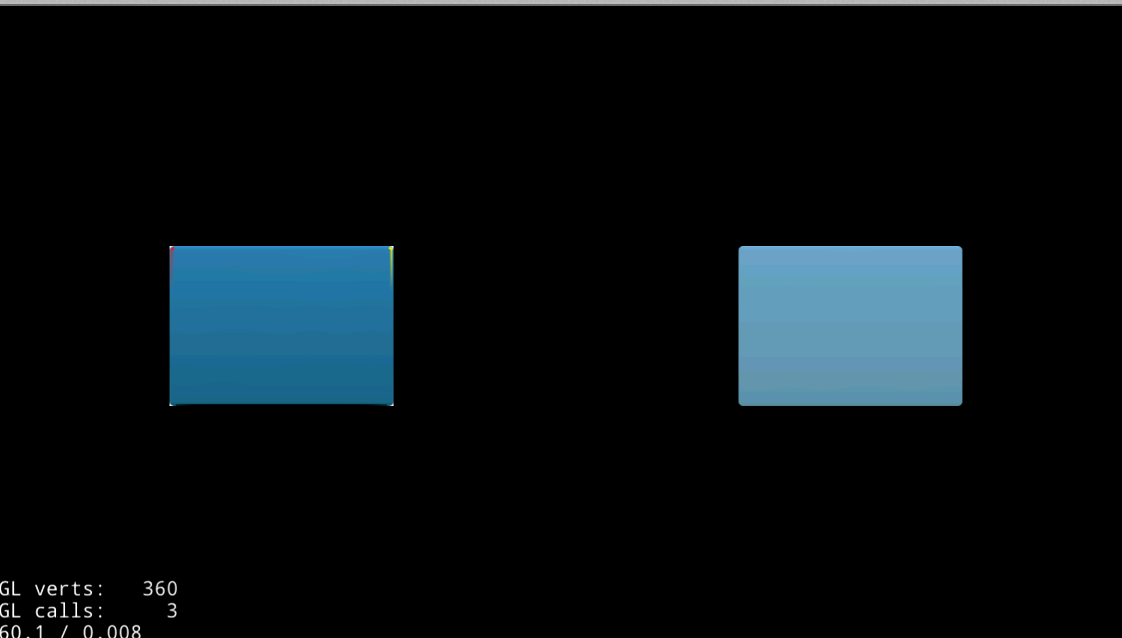

S9_TexturePacker

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("ui.plist");
    float x = visibleSize.width / 4;
    float y = visibleSize.height / 2;


    auto s = Scale9Sprite::createWithSpriteFrameName("button_normal.png");

    s->setPosition(Point(x, y));
    log("... setPosition");

    s->setContentSize(Size(14 * 16, 10 * 16));
    log("... setContentSize");

    this->addChild(s);



    auto blocks_scaled_with_insets = Scale9Sprite::createWithSpriteFrameName("button_actived.png");


     x = visibleSize.width * 3/4;
    blocks_scaled_with_insets->setContentSize(Size(14 * 16, 10 * 16));

    blocks_scaled_with_insets->setPosition(Point(x , y));

    this->addChild(blocks_scaled_with_insets);

cocos2d3.0 Scale9Sprite

Scale9FrameNameSpriteSheetRotatedSetCapInsetLater

  Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("blocks9ss.plist");
    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;





    auto blocks_scaled_with_insets = Scale9Sprite::createWithSpriteFrameName("blocks9r.png");
    blocks_scaled_with_insets->setInsetLeft(32);
    blocks_scaled_with_insets->setInsetRight(32);
    blocks_scaled_with_insets->setPreferredSize(Size(32 * 5.5f, 32 * 4));

    blocks_scaled_with_insets->setPosition(Point(x , y));

    this->addChild(blocks_scaled_with_insets);

cocos2d3.0 Scale9Sprite

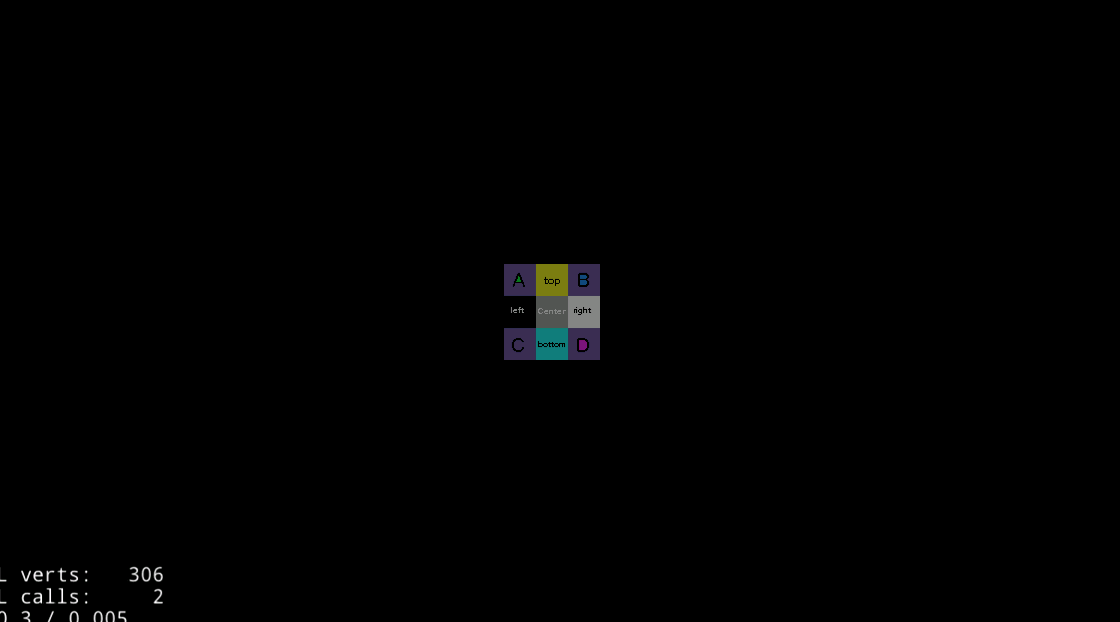

S9CascadeOpacityAndColor

    Size visibleSize = Director::getInstance()->getVisibleSize();
    Point origin = Director::getInstance()->getVisibleOrigin();

     SpriteFrameCache::getInstance()->addSpriteFramesWithFile("blocks9ss.plist");
    float x = visibleSize.width / 2;
    float y = visibleSize.height / 2;

    auto rgba = Layer::create();
    rgba->setCascadeColorEnabled(true);
    rgba->setCascadeOpacityEnabled(true);
    this->addChild(rgba);




    auto blocks_scaled_with_insets = Scale9Sprite::createWithSpriteFrameName("blocks9r.png");


    blocks_scaled_with_insets->setPosition(Point(x , y));

    rgba->addChild(blocks_scaled_with_insets);



    auto actions = Sequence::create(FadeIn::create(1),TintTo::create(1, 0, 255, 0),TintTo::create(1, 255, 255, 255),FadeOut::create(1), NULL);
    auto repeat = RepeatForever::create(actions);

    rgba->runAction(repeat);

cocos2d3.0 Scale9Sprite
