目录
一、问题描述

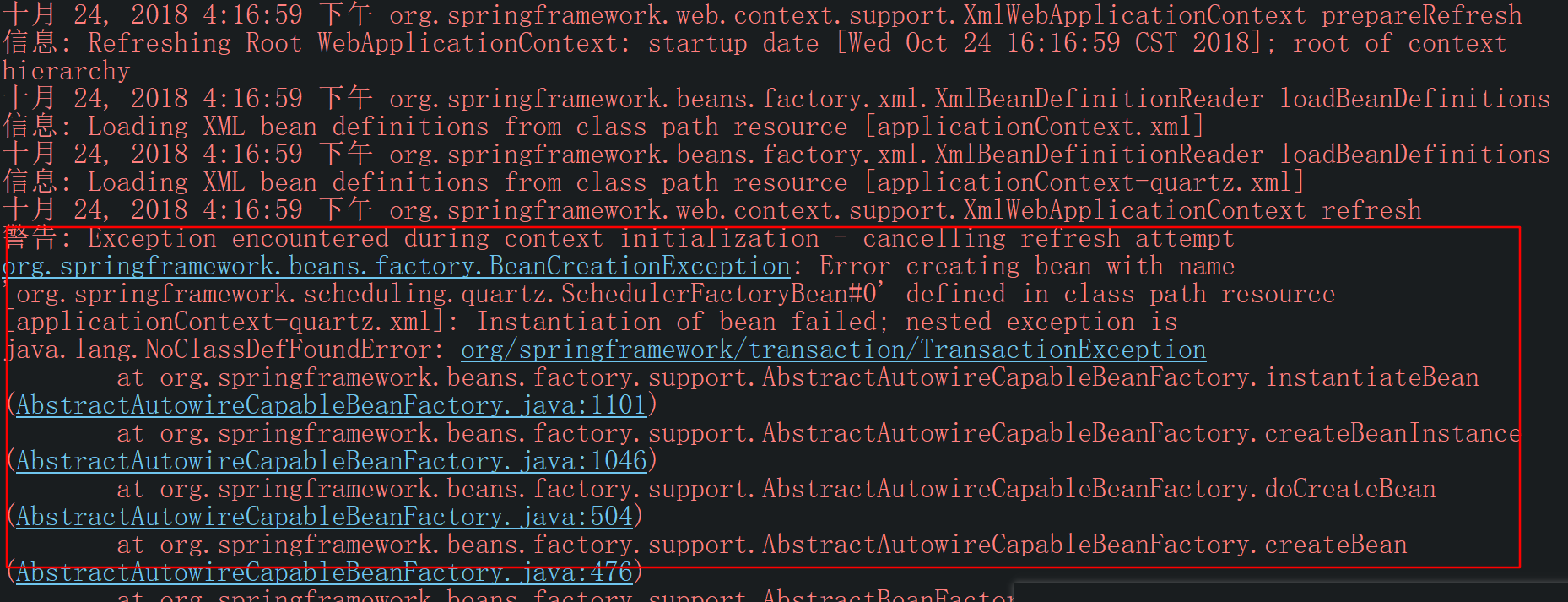

今天使用Quartz+Spring测试定时任务时，发现报异常：Error creating bean with name ‘org.springframework.scheduling.quartz.SchedulerFactoryBean#0‘ defined in class path resource [applicationContext-quartz.xml]: Instantiation of bean failed; nested exception is java.lang.NoClassDefFoundError: org/springframework/transaction/TransactionException
二、问题分析
从异常信息最后我们可以看到org/springframework/transaction/TransactionException，居然报的是事务异常，原来Quartz需要事务支持也就是spring-tx包，而我恰好没有导入这个包，所以导致实例化错误
三、问题解决
在Maven中加入spring-tx包，然后重新启动服务器即可
四、工程源码
4.1maven配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.codecoord</groupId>
<artifactId>QuartzTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>war</packaging>
<name>QuartzTest Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
</properties>
<dependencies>
<!-- https://mvnrepository.com/artifact/org.quartz-scheduler/quartz -->
<dependency>
<groupId>org.quartz-scheduler</groupId>
<artifactId>quartz</artifactId>
<version>2.3.0</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.1.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>4.1.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>4.1.6.RELEASE</version>
</dependency>
</dependencies>
<build>
<finalName>QuartzTest</finalName>
<pluginManagement><!-- lock down plugins versions to avoid using Maven
defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.0.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.7.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.20.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.0</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
4.2 web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
</web-app>
4.3 spring配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:task="http://www.springframework.org/schema/task"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-.xsd
http://www.springframework.org/schema/task
http://www.springframework.org/schema/task/spring-task.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aops.xsd">
<!-- 导入quartz配置文件 -->
<import resource="classpath:applicationContext-quartz.xml"/>
</beans>4.4 Quartz配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<!-- 任务类 -->
<bean id="myJob" class="com.codecoord.main.QuartzTest"/>
<!-- 任务明细 -->
<bean id="task" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
<!-- 作业类 -->
<property name="targetObject">
<ref bean="myJob"/>
</property>
<!-- 作业类方法 -->
<property name="targetMethod">
<value>myTask</value>
</property>
</bean>
<!-- 执行计划-触发器 -->
<bean id="jobTrigger" class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
<!-- 执行任务 -->
<property name="jobDetail">
<ref bean="task"/>
</property>
<!-- 制定执行周期 -->
<property name="cronExpression">
<value>0/2 * * * * ?</value>
</property>
</bean>
<!-- 总管理类 如果将lazy-init='false'那么容器启动就会执行调度程序 -->
<bean class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
<property name="triggers">
<list>
<ref bean="jobTrigger"/>
</list>
</property>
</bean>
</beans>
4.5 定时任务类
package com.codecoord.main;
public class QuartzTest {
public void myTask() {
System.out.println("This message is from Quartz！");
}
}

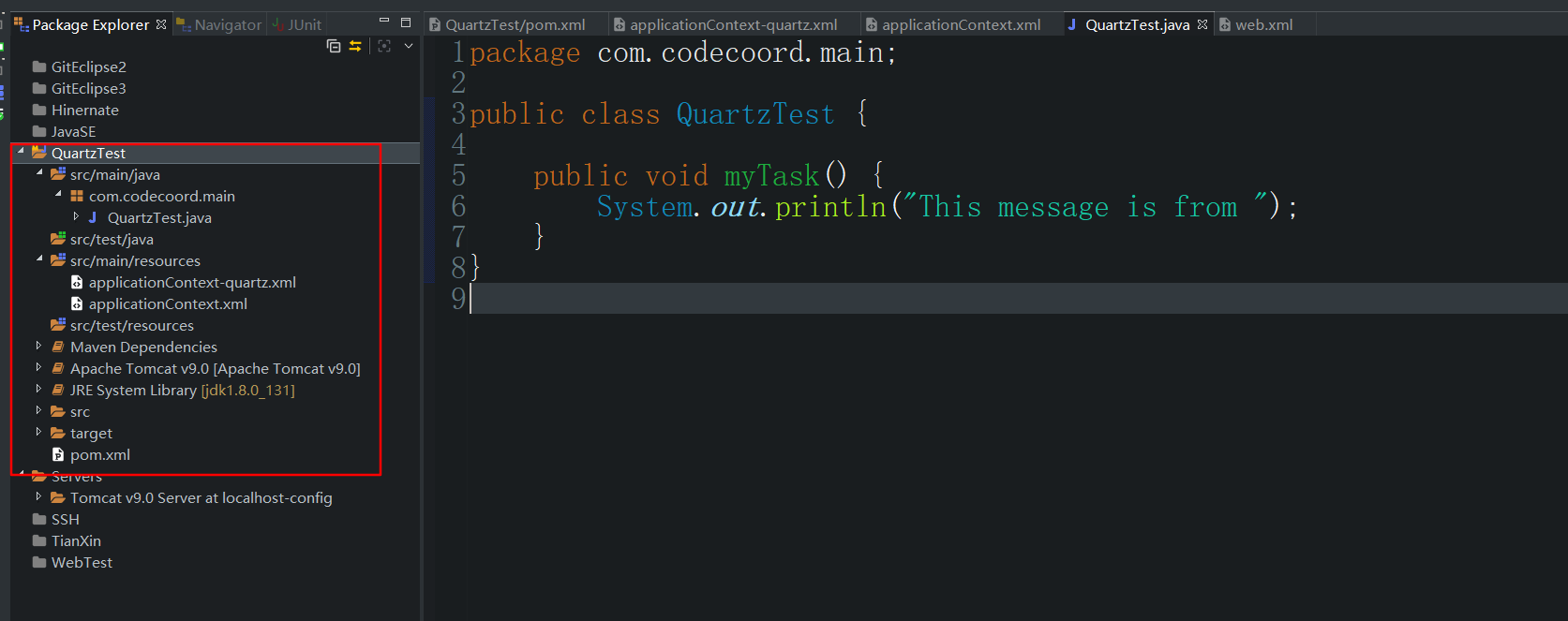

4.6 工程总体结构
