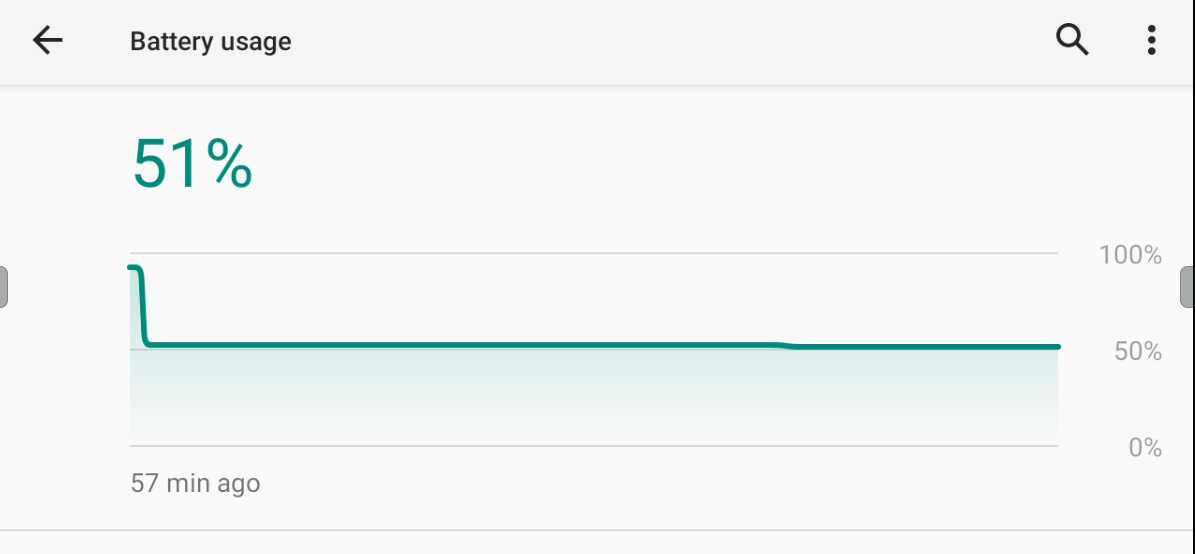

这个界面就是packages/apps/Settings/src/com/android/settings/fuelgauge/PowerUsageAdcanced.java，然后查看它加载的布局文件
@Override
protected int getPreferenceScreenResId() {
return R.xml.power_usage_advanced;
}布局代码如下
<PreferenceScreen
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:settings="http://schemas.android.com/apk/res-auto"
android:key="power_usage_advanced_screen"
android:title="@string/advanced_battery_title"
settings:keywords="@string/keywords_battery">
<com.android.settings.fuelgauge.BatteryHistoryPreference
android:key="battery_graph"/>
<PreferenceCategory
android:key="app_list"
android:title="@string/power_usage_list_summary"/>
</PreferenceScreen>从布局上看，我们可以发现，我们要找的那个曲线图就是BatteryHistoryPreference，回到PowerUsageAdvanced中看一下
@Override
public void onCreate(Bundle icicle) {
super.onCreate(icicle);
final Context context = getContext();
mHistPref = (BatteryHistoryPreference) findPreference(KEY_BATTERY_GRAPH);
mPowerUsageFeatureProvider = FeatureFactory.getFactory(context)
.getPowerUsageFeatureProvider(context);
mBatteryUtils = BatteryUtils.getInstance(context);
// init the summary so other preferences won't have unnecessary move
updateHistPrefSummary(context);
restoreSavedInstance(icicle);
}
@Override
protected void refreshUi(@BatteryUpdateType int refreshType) {
final Context context = getContext();
if (context == null) {
return;
}
updatePreference(mHistPref);
updateHistPrefSummary(context);
mBatteryAppListPreferenceController.refreshAppListGroup(mStatsHelper, mShowAllApps);
}
private void updateHistPrefSummary(Context context) {
Intent batteryIntent =
context.registerReceiver(null, new IntentFilter(Intent.ACTION_BATTERY_CHANGED));
final boolean plugged = batteryIntent.getIntExtra(BatteryManager.EXTRA_PLUGGED, -1) != 0;
if (mPowerUsageFeatureProvider.isEnhancedBatteryPredictionEnabled(context) && !plugged) {
mHistPref.setBottomSummary(
mPowerUsageFeatureProvider.getAdvancedUsageScreenInfoString());
} else {
mHistPref.hideBottomSummary();
}
}我们发现BatteryHistoryPreference没有做什么特别的时候，只有一个updatePreference()，下面我们追一下看看去做什么了。这个updatePreference()在父类中有实现。
看一下packages/apps/Settings/src/com/android/settings/fuelgauge/PowerUsageBase.java，很简单，就是调用了BatteryHistoryPreference中的setStats()。
protected void updatePreference(BatteryHistoryPreference historyPref) {
final long startTime = System.currentTimeMillis();
historyPref.setStats(mStatsHelper);
BatteryUtils.logRuntime(TAG, "updatePreference", startTime);
}然后我们看一下BatteryHistoryPreference，setStats就是去获取一下batteryinfo，主要看onBindViewHolder，它会调用BatteryInfo的bindHistory去画图。
public void setStats(BatteryStatsHelper batteryStats) {
BatteryInfo.getBatteryInfo(getContext(), info -> {
mBatteryInfo = info;
notifyChanged();
}, batteryStats, false);
}
@Override
public void onBindViewHolder(PreferenceViewHolder view) {
super.onBindViewHolder(view);
final long startTime = System.currentTimeMillis();
if (mBatteryInfo == null) {
return;
}
((TextView) view.findViewById(R.id.charge)).setText(mBatteryInfo.batteryPercentString);
mSummaryView = (TextView) view.findViewById(R.id.bottom_summary);
if (mSummary != null) {
mSummaryView.setText(mSummary);
}
if (hideSummary) {
mSummaryView.setVisibility(View.GONE);
}
UsageView usageView = (UsageView) view.findViewById(R.id.battery_usage);
usageView.findViewById(R.id.label_group).setAlpha(.7f);
mBatteryInfo.bindHistory(usageView);
BatteryUtils.logRuntime(TAG, "onBindViewHolder", startTime);
}下面就去看packages/apps/Settings/src/com/android/settings/fuelgauge/BatteryInfo.java，bindHistory就是去获取曲线图要画的每个点的信息。
parse(mStats, parserList);会去循环获取HistoryItem，它储存了每个时间点的电量，用来画图的时候用的。所以我们要去看HistoryItem是怎么获取的。
public void bindHistory(final UsageView view, BatteryDataParser... parsers) {
final Context context = view.getContext();
BatteryDataParser parser = new BatteryDataParser() {
SparseIntArray points = new SparseIntArray();
long startTime;
int lastTime = -1;
byte lastLevel;
@Override
public void onParsingStarted(long startTime, long endTime) {
this.startTime = startTime;
timePeriod = endTime - startTime;
view.clearPaths();
// Initially configure the graph for history only.
view.configureGraph((int) timePeriod, 100);
}
@Override
public void onDataPoint(long time, HistoryItem record) {
lastTime = (int) time;
lastLevel = record.batteryLevel;
points.put(lastTime, lastLevel);
}
@Override
public void onDataGap() {
if (points.size() > 1) {
view.addPath(points);
}
points.clear();
}
@Override
public void onParsingDone() {
onDataGap();
// Add projection if we have an estimate.
if (remainingTimeUs != 0) {
PowerUsageFeatureProvider provider = FeatureFactory.getFactory(context)
.getPowerUsageFeatureProvider(context);
if (!mCharging && provider.isEnhancedBatteryPredictionEnabled(context)) {
points = provider.getEnhancedBatteryPredictionCurve(context, startTime);
} else {
// Linear extrapolation.
if (lastTime >= 0) {
points.put(lastTime, lastLevel);
points.put((int) (timePeriod +
PowerUtil.convertUsToMs(remainingTimeUs)),
mCharging ? 100 : 0);
}
}
}
// If we have a projection, reconfigure the graph to show it.
if (points != null && points.size() > 0) {
int maxTime = points.keyAt(points.size() - 1);
view.configureGraph(maxTime, 100);
view.addProjectedPath(points);
}
}
};
BatteryDataParser[] parserList = new BatteryDataParser[parsers.length + 1];
for (int i = 0; i < parsers.length; i++) {
parserList[i] = parsers[i];
}
parserList[parsers.length] = parser;
parse(mStats, parserList);
String timeString = context.getString(R.string.charge_length_format,
Formatter.formatShortElapsedTime(context, timePeriod));
String remaining = "";
if (remainingTimeUs != 0) {
remaining = context.getString(R.string.remaining_length_format,
Formatter.formatShortElapsedTime(context, remainingTimeUs / 1000));
}
view.setBottomLabels(new CharSequence[] {timeString, remaining});
}从代码上看HistoryItem是通过BatteryStats对象获取的，下面看BatteryStats对象怎么获取的。
final HistoryItem rec = new HistoryItem();
while (stats.getNextHistoryLocked(rec)) {
是通过pars(mStats,parserList)中传过去的，接着看mStats怎么获取的。它是通过getBatteryInfo获取的。
public static BatteryInfo getBatteryInfo(Context context, Intent batteryBroadcast,
BatteryStats stats, Estimate estimate, long elapsedRealtimeUs, boolean shortString) {
final long startTime = System.currentTimeMillis();
BatteryInfo info = new BatteryInfo();
info.mStats = stats;然后这个getBatteryInfo又是通过别的getBatteryInfo获取的，你会发现BatteryStats是通过BatteryStatsHelper获得的。而这个最上面的getBatteryInfo刚好是BatteryHistoryPreference中setStats的调用的，然后传了一个BatteryStatsHelper对象，所以我们要往回追。
public static void getBatteryInfo(final Context context, final Callback callback,
final BatteryStatsHelper statsHelper, boolean shortString) {
new AsyncTask<Void, Void, BatteryInfo>() {
@Override
protected BatteryInfo doInBackground(Void... params) {
return getBatteryInfo(context, statsHelper, shortString);
}
@Override
protected void onPostExecute(BatteryInfo batteryInfo) {
final long startTime = System.currentTimeMillis();
callback.onBatteryInfoLoaded(batteryInfo);
BatteryUtils.logRuntime(LOG_TAG, "time for callback", startTime);
}
}.execute();
}
public static BatteryInfo getBatteryInfo(final Context context,
final BatteryStatsHelper statsHelper, boolean shortString) {
final BatteryStats stats;
final long batteryStatsTime = System.currentTimeMillis();
if (statsHelper == null) {
final BatteryStatsHelper localStatsHelper = new BatteryStatsHelper(context,
true);
localStatsHelper.create((Bundle) null);
stats = localStatsHelper.getStats();
} else {
stats = statsHelper.getStats();
}
BatteryUtils.logRuntime(LOG_TAG, "time for getStats", batteryStatsTime);
final long startTime = System.currentTimeMillis();
PowerUsageFeatureProvider provider =
FeatureFactory.getFactory(context).getPowerUsageFeatureProvider(context);
final long elapsedRealtimeUs =
PowerUtil.convertMsToUs(SystemClock.elapsedRealtime());
final Intent batteryBroadcast = context.registerReceiver(null,
new IntentFilter(Intent.ACTION_BATTERY_CHANGED));
// 0 means we are discharging, anything else means charging
final boolean discharging =
batteryBroadcast.getIntExtra(BatteryManager.EXTRA_PLUGGED, -1) == 0;
if (discharging && provider != null
&& provider.isEnhancedBatteryPredictionEnabled(context)) {
Estimate estimate = provider.getEnhancedBatteryPrediction(context);
if (estimate != null) {
Estimate.storeCachedEstimate(context, estimate);
BatteryUtils
.logRuntime(LOG_TAG, "time for enhanced BatteryInfo", startTime);
return BatteryInfo.getBatteryInfo(context, batteryBroadcast, stats,
estimate, elapsedRealtimeUs, shortString);
}
}
final long prediction = discharging
? stats.computeBatteryTimeRemaining(elapsedRealtimeUs) : 0;
final Estimate estimate = new Estimate(
PowerUtil.convertUsToMs(prediction),
false, /* isBasedOnUsage */
EstimateKt.AVERAGE_TIME_TO_DISCHARGE_UNKNOWN);
BatteryUtils.logRuntime(LOG_TAG, "time for regular BatteryInfo", startTime);
return BatteryInfo.getBatteryInfo(context, batteryBroadcast, stats,
estimate, elapsedRealtimeUs, shortString);
}
下面回去看BatteryHistoryPreference中的setStats中的BatteryStatsHelper怎么获取的，继续往回就回到了PowerUsageBase了。
protected void updatePreference(BatteryHistoryPreference historyPref) {
final long startTime = System.currentTimeMillis();
historyPref.setStats(mStatsHelper);
BatteryUtils.logRuntime(TAG, "updatePreference", startTime);
}然后接着看这个mStatsHelper怎么获取的。
@Override
public void onAttach(Activity activity) {
super.onAttach(activity);
mUm = (UserManager) activity.getSystemService(Context.USER_SERVICE);
mStatsHelper = new BatteryStatsHelper(activity, true);
}
@Override
public void onCreate(Bundle icicle) {
super.onCreate(icicle);
mStatsHelper.create(icicle);
setHasOptionsMenu(true);
mBatteryBroadcastReceiver = new BatteryBroadcastReceiver(getContext());
mBatteryBroadcastReceiver.setBatteryVoltageTempListener(mBatteryVoltageTempListener);
mBatteryBroadcastReceiver.setBatteryChangedListener(type -> {
restartBatteryStatsLoader(type);
});
}
public class PowerLoaderCallback implements LoaderManager.LoaderCallbacks<BatteryStatsHelper> {
private int mRefreshType;
@Override
public Loader<BatteryStatsHelper> onCreateLoader(int id,
Bundle args) {
mRefreshType = args.getInt(KEY_REFRESH_TYPE);
return new BatteryStatsHelperLoader(getContext());
}
@Override
public void onLoadFinished(Loader<BatteryStatsHelper> loader,
BatteryStatsHelper statsHelper) {
mStatsHelper = statsHelper;
refreshUi(mRefreshType);
}
@Override
public void onLoaderReset(Loader<BatteryStatsHelper> loader) {
}
}
后面我就追不下去了，没什么思路了。后来发现，既然这边追不下去，那么我是不是可以去看系统是怎么去设置HistroyItem的。后来不知道看到哪里了，因为我要找的是电量，所以直接去BatteryStatsImpl（BatteryStats是接口），中去看它怎么给HistoryItem赋值的。然后这边看看，那边看看。去里面搜索batterylevel，然后无意中发现了
setBatteryStateLocked后来加了log，debug，就是这个去设置HistoryItem的电量。然后去frameworks/base下面去搜索看看，setBatteryStateLocked有哪些地方用了。发现services/core/java/com/android/server/am/BatteryStatsService.java中有使用，
@Override
public void setBatteryState(final int status, final int health, final int plugType,
final int level, final int temp, final int volt, final int chargeUAh,
final int chargeFullUAh) {
enforceCallingPermission();
// BatteryService calls us here and we may update external state. It would be wrong
// to block such a low level service like BatteryService on external stats like WiFi.
mWorker.scheduleRunnable(() -> {
synchronized (mStats) {
final boolean onBattery = BatteryStatsImpl.isOnBattery(plugType, status);
if (mStats.isOnBattery() == onBattery) {
// The battery state has not changed, so we don't need to sync external
// stats immediately.
mStats.setBatteryStateLocked(status, health, plugType, level, temp, volt,
chargeUAh, chargeFullUAh);
return;
}
}
// Sync external stats first as the battery has changed states. If we don't sync
// before changing the state, we may not collect the relevant data later.
// Order here is guaranteed since we're scheduling from the same thread and we are
// using a single threaded executor.
mWorker.scheduleSync("battery-state", BatteryExternalStatsWorker.UPDATE_ALL);
mWorker.scheduleRunnable(() -> {
synchronized (mStats) {
mStats.setBatteryStateLocked(status, health, plugType, level, temp, volt,
chargeUAh, chargeFullUAh);
}
});
});
}下面在去看看setBatteryState哪里有用。 其实它使用了AIDL，public final class BatteryStatsService extends IBatteryStats.Stub
，然后搜索发现，services/core/java/com/android/server/BatteryService.java中有使用这个。
private void processValuesLocked(boolean force) {
boolean logOutlier = false;
long dischargeDuration = 0;
mBatteryLevelCritical =
mHealthInfo.batteryStatus != BatteryManager.BATTERY_STATUS_UNKNOWN
&& mHealthInfo.batteryLevel <= mCriticalBatteryLevel;
if (mHealthInfo.chargerAcOnline) {
mPlugType = BatteryManager.BATTERY_PLUGGED_AC;
} else if (mHealthInfo.chargerUsbOnline) {
mPlugType = BatteryManager.BATTERY_PLUGGED_USB;
} else if (mHealthInfo.chargerWirelessOnline) {
mPlugType = BatteryManager.BATTERY_PLUGGED_WIRELESS;
} else {
mPlugType = BATTERY_PLUGGED_NONE;
}
if (DEBUG) {
Slog.d(TAG, "Processing new values: "
+ "info=" + mHealthInfo
+ ", mBatteryLevelCritical=" + mBatteryLevelCritical
+ ", mPlugType=" + mPlugType);
}
// Let the battery stats keep track of the current level.
try {
mBatteryStats.setBatteryState(mHealthInfo.batteryStatus, mHealthInfo.batteryHealth,
mPlugType, mHealthInfo.batteryLevel, mHealthInfo.batteryTemperature,
mHealthInfo.batteryVoltage, mHealthInfo.batteryChargeCounter,
mHealthInfo.batteryFullCharge);
}
} catch (RemoteException e) {
// Should never happen.
}
最后其实就是BatteryService中，当电池变化了，就去设置一下。
setBatteryState里面的电量就是图上显示的，当然它会有一些处理，并且保存下来，形成一个列表。然后用的时候就可以取出来了，每个时间点的电量。
————————————————————————————————————
PS：Last full charge 和 Screen usage since full charge也是通过这个触发计时的。
BatteryService setBatteryState() -> IBatteryStats setBatteryState() -> BatteryStatsService setBatteryState() -> BatteryStatsImpl setBatteryStateLock() -> setOnBatteryLocked()
BatteryStatsImpl。
从代码上可以看出，会更具电量等信息去处理，是否要重新计时。就是batteryservice setBatteryState那传过来的。
protected void setOnBatteryLocked(final long mSecRealtime, final long mSecUptime,
final boolean onBattery, final int oldStatus, final int level, final int chargeUAh) {
boolean doWrite = false;
Message m = mHandler.obtainMessage(MSG_REPORT_POWER_CHANGE);
m.arg1 = onBattery ? 1 : 0;
mHandler.sendMessage(m);
final long uptime = mSecUptime * 1000;
final long realtime = mSecRealtime * 1000;
final int screenState = mScreenState;
if (onBattery) {
// We will reset our status if we are unplugging after the
// battery was last full, or the level is at 100, or
// we have gone through a significant charge (from a very low
// level to a now very high level).
boolean reset = false;
if (!mNoAutoReset && (oldStatus == BatteryManager.BATTERY_STATUS_FULL
|| level >= 90
|| (mDischargeCurrentLevel < 20 && level >= 80))) {
Slog.i(TAG, "Resetting battery stats: level=" + level + " status=" + oldStatus
+ " dischargeLevel=" + mDischargeCurrentLevel
+ " lowAmount=" + getLowDischargeAmountSinceCharge()
+ " highAmount=" + getHighDischargeAmountSinceCharge());
// Before we write, collect a snapshot of the final aggregated
// stats to be reported in the next checkin. Only do this if we have
// a sufficient amount of data to make it interesting.
版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容， 请联系我们举报，一经查实，本站将立刻删除。
发布者：全栈程序员-站长，转载请注明出处：https://javaforall.net/219176.html原文链接：https://javaforall.net
![java中switch的用法和逻辑运算符[通俗易懂]](https://javaforall.net/wp-content/uploads/2020/11/2020110817443450-480x300.jpg)
