高通平台dtb文件的加载过程

高通平台对dts的两种打包方式
- zImage-dtb
- dt.img
zImage-dtb方式
dt.img方式
小结

高通平台对dts的两种打包方式

zImage-dtb

直接和kernel编译在一起，生成zImage-dtb，dtb的位置在kernel起始地址偏移0x2C的位置，然后和kernel一起打包到bootimage里。

dt.img

独立编译出dt.img, 然后打包到bootimage里。

zImage-dtb方式

zImage-dtb的编译

dtb怎么编译进bootimage的？
makefile文件分析

.config 文件里生成的内容如下

CONFIG_ARCH_MSM8916=y

CONFIG_ARCH_MSM8937=y

CONFIG_ARCH_MSM8917=y

CONFIG_ARCH_MSM8920=y

CONFIG_ARCH_MSM8940=y

CONFIG_ARCH_MSM8953=y

Jetbrains全家桶1年46，售后保障稳定

kernel/msm-3.18/arch/arm/boot/dts/qcom/Makefile

（只要这些arch定义了这些dtb文件都会被包含进去）

dtb-$(CONFIG_ARCH_MDMCALIFORNIUM) += mdmcalifornium-sim.dtb \

mdmcalifornium-rumi.dtb \

…

mdmcalifornium-v1.1-nand-mtp.dtb \

mdmcalifornium-v1.1-nand-dualwifi-mtp.dtb



dtb-$(CONFIG_ARCH_MSM8937) += msm8937-rumi.dtb \

msm8937-pmi8950-cdp.dtb \

.......

apq8037-pmi8950-mtp.dtb \

apq8037-pmi8937-mtp.dtb



dtb-$(CONFIG_ARCH_MSM8917) += msm8917-rumi.dtb \

apq8017-pmi8937-cdp.dtb \

…

msm8917-qgp-tmo.dtb \

msm8917-pmi8937-qrd-sku5.dtb

.config 文件里生成的内容如下

CONFIG_USE_OF=y

CONFIG_ATAGS=y

# CONFIG_DEPRECATED_PARAM_STRUCT is not set

CONFIG_BUILD_ARM_APPENDED_DTB_IMAGE=y

CONFIG_BUILD_ARM_APPENDED_DTB_IMAGE_NAMES=

kernel/msm-3.18/arch/arm/boot/Makefile

DTB_NAMES := $(subst $\",,$(CONFIG_BUILD_ARM_APPENDED_DTB_IMAGE_NAMES))

ifneq ($(DTB_NAMES),)

DTB_LIST := $(addsuffix .dtb,$(DTB_NAMES))

else

DTB_LIST := $(dtb-y)

endif

DTB_OBJS := $(addprefix $(obj)/dts/qcom/,$(DTB_LIST))

因为CONFIG_BUILD_ARM_APPENDED_DTB_IMAGE_NAMES 这个为空，

所以

DTB_LIST := $(dtb-y)

DTB_OBJS := $(obj)/dts/qcom/$(dtb-y)

需要编译zImage-dtb

# Default target when executing plain make

ifeq ($(CONFIG_XIP_KERNEL),y)
KBUILD_IMAGE := xipImage

else ifeq ($(CONFIG_BUILD_ARM_APPENDED_DTB_IMAGE),y)

KBUILD_IMAGE := zImage-dtb

else

KBUILD_IMAGE := zImage

endif



$(obj)/Image: vmlinux FORCE

$(call if_changed,objcopy)

@$(kecho) ' Kernel: $@ is ready'



$(obj)/compressed/vmlinux: $(obj)/Image FORCE

$(Q)$(MAKE) $(build)=$(obj)/compressed $@



$(obj)/zImage: $(obj)/compressed/vmlinux FORCE

$(call if_changed,objcopy)

@$(kecho) ' Kernel: $@ is ready'



$(obj)/zImage-dtb: $(obj)/zImage $(DTB_OBJS) FORCE

$(call if_changed,cat)

@echo ' Kernel: $@ is ready'

可以看出zImage-dtb 依赖于 $(obj)/zImage $(DTB_OBJS)

%.dtb: | scripts

$(Q)$(MAKE) $(build)=$(boot)/dts MACHINE=$(MACHINE) $(boot)/dts/$@



dtbs: scripts

$(Q)$(MAKE) $(build)=$(boot)/dts MACHINE=$(MACHINE) dtbs

$(foreach DIR, $(DTSSUBDIR), $(Q)$(MAKE) $(build)=$(boot)/dts/$(DIR) MACHINE=$(MACHINE) dtbs)



zImage-dtb: vmlinux scripts dtbs

$(Q)$(MAKE) $(build)=$(boot) MACHINE=$(MACHINE) DTSSUBDIR=$(DTSSUBDIR) $(boot)/$@

二进制文件查看

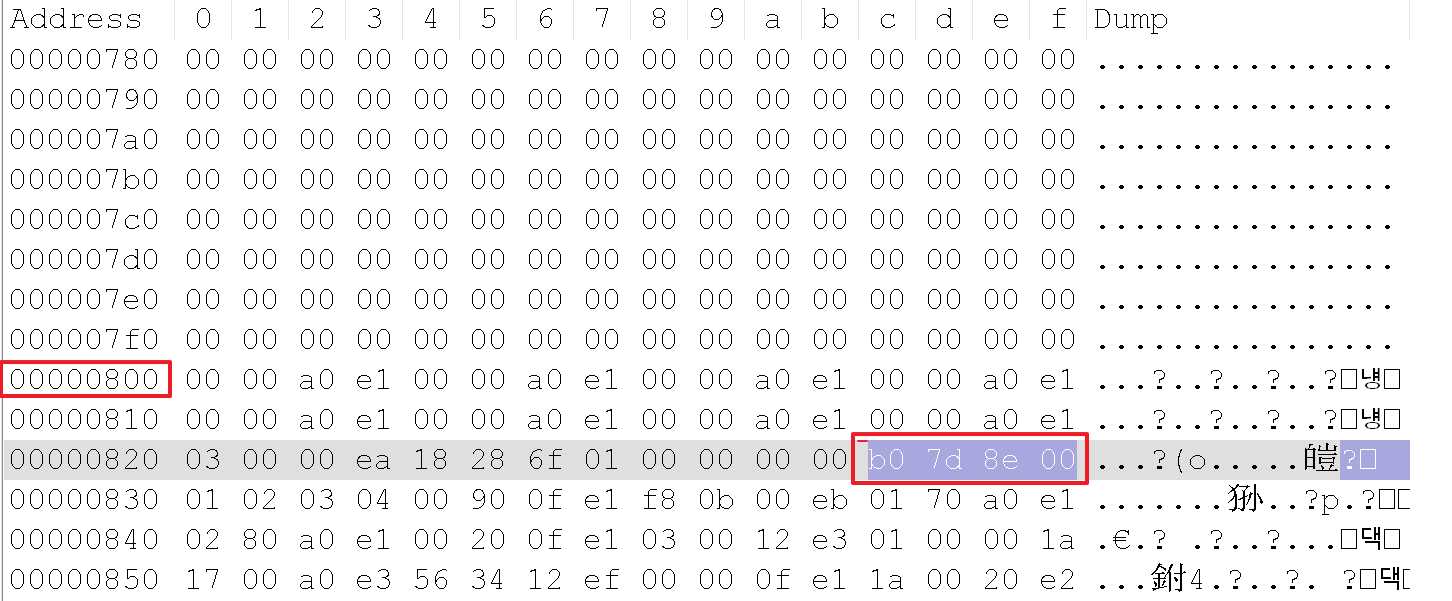

查看kernel的二进制文件，查看0x2C位置的值，此处存放的值是第一个dtb文件的偏移地址
kernel偏移0x2C的值
从图中可以看出dtb所在的地址为0x008e7db0 + 0x800 = 0x008e85b0
在这里插入图片描述

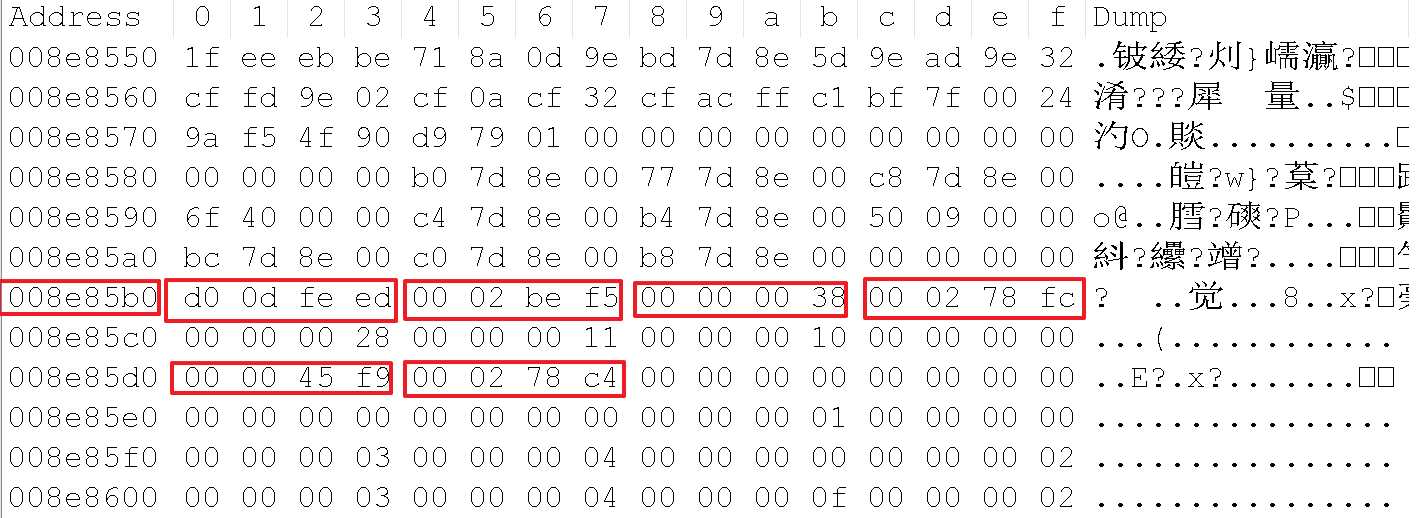

0x008e85b0地址可以看到magic 0xd00dfeed(大端)

0x008e85b0 + 0x0002bef5 = 0x009144A5为下一个dtb的起始地址
在这里插入图片描述

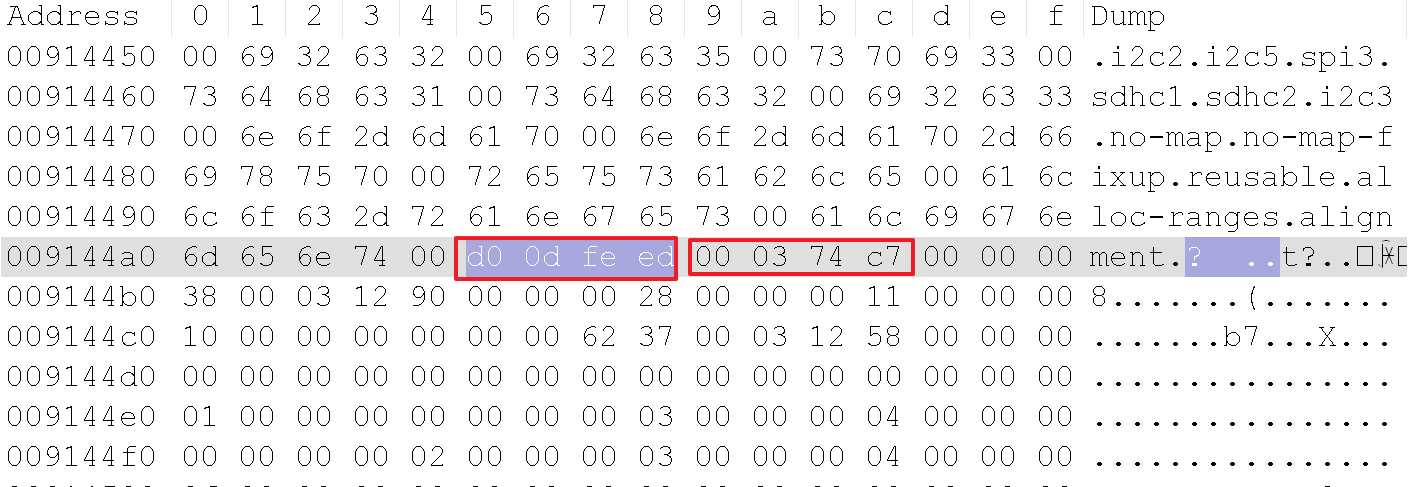

0x009144A5地址可以看到新的dtb开始，看到magic 0xd00dfeed(大端)

lk的加载过程代码分析

app\aboot\aboot.c

boot_linux_from_mmc
dt_size = hdr->dt_size;
if(dt_size) {

…
}else{

dtb = dev_tree_appended()
}

void *dev_tree_appended(void *kernel, uint32_t kernel_size, uint32_t dtb_offset, void *tags)
{

	if (dtb_offset)
		app_dtb_offset = dtb_offset;
	else
		memcpy((void*) &app_dtb_offset, (void*) (kernel + DTB_OFFSET), sizeof(uint32_t));
		....
			while (((uintptr_t)dtb + sizeof(struct fdt_header)) < (uintptr_t)kernel_end) {

		struct fdt_header dtb_hdr;
		uint32_t dtb_size;

		/* the DTB could be unaligned, so extract the header, * and operate on it separately */
		memcpy(&dtb_hdr, dtb, sizeof(struct fdt_header));
		if (fdt_check_header((const void *)&dtb_hdr) != 0 ||
		    fdt_check_header_ext((const void *)&dtb_hdr) != 0 ||
		    ((uintptr_t)dtb + (uintptr_t)fdt_totalsize((const void *)&dtb_hdr) < (uintptr_t)dtb) ||
			((uintptr_t)dtb + (uintptr_t)fdt_totalsize((const void *)&dtb_hdr) > (uintptr_t)kernel_end))
			break;
		dtb_size = fdt_totalsize(&dtb_hdr);

		dev_tree_compatible(dtb, dtb_size, dt_entry_queue);

		/* goto the next device tree if any */
		dtb += dtb_size;
	}

	best_match_dt_entry = platform_dt_match_best(dt_entry_queue);
	if (best_match_dt_entry){

		bestmatch_tag = (void *)best_match_dt_entry->offset;
		bestmatch_tag_size = best_match_dt_entry->size;
		dprintf(INFO, "Best match DTB tags %u/%08x/0x%08x/%x/%x/%x/%x/%x/%x/%x\n",
			best_match_dt_entry->platform_id, best_match_dt_entry->variant_id,
			best_match_dt_entry->board_hw_subtype, best_match_dt_entry->soc_rev,
			best_match_dt_entry->pmic_rev[0], best_match_dt_entry->pmic_rev[1],
			best_match_dt_entry->pmic_rev[2], best_match_dt_entry->pmic_rev[3],
			best_match_dt_entry->offset, best_match_dt_entry->size);
		dprintf(INFO, "Using pmic info 0x%0x/0x%x/0x%x/0x%0x for device 0x%0x/0x%x/0x%x/0x%0x\n",
			best_match_dt_entry->pmic_rev[0], best_match_dt_entry->pmic_rev[1],
			best_match_dt_entry->pmic_rev[2], best_match_dt_entry->pmic_rev[3],
			board_pmic_target(0), board_pmic_target(1),
			board_pmic_target(2), board_pmic_target(3));
	}
	.......................
	return NULL;
}

其中DTB_OFFSET的定义为0x2C，与上一节的图相对应。
根据偏移值找到dtb的位置，然后对每个dtb进行解析，找到最匹配的那个dtb，这个是有dev_tree_compatible(dtb, dtb_size, dt_entry_queue);函数来实现的。

dev_tree_compatible(void *dtb, uint32_t dtb_size, struct dt_entry_node *dtb_list)
platform_dt_absolute_match(cur_dt_entry, dtb_list)

dev_tree_compatible会调用platform_dt_absolute_match来判断

static int platform_dt_absolute_match(struct dt_entry *cur_dt_entry, struct dt_entry_node *dt_list)
{

	uint32_t cur_dt_hlos_ddr;
	uint32_t cur_dt_hw_platform;
	uint32_t cur_dt_hw_subtype;
	uint32_t cur_dt_msm_id;
	dt_node *dt_node_tmp = NULL;

	/* Platform-id * bit no |31 24|23 16|15 0| * |reserved|foundry-id|msm-id| */
	cur_dt_msm_id = (cur_dt_entry->platform_id & 0x0000ffff);
	cur_dt_hw_platform = (cur_dt_entry->variant_id & 0x000000ff);
	cur_dt_hw_subtype = (cur_dt_entry->board_hw_subtype & 0xff);

	/* Determine the bits 10:8 to check the DT with the DDR Size */
	cur_dt_hlos_ddr = (cur_dt_entry->board_hw_subtype & 0x700);

	/* 1. must match the msm_id, platform_hw_id, platform_subtype and DDR size * soc, board major/minor, pmic major/minor must less than board info * 2. find the matched DTB then return 1 * 3. otherwise return 0 */
	if((cur_dt_msm_id == (board_platform_id() & 0x0000ffff)) &&
		(cur_dt_hw_platform == board_hardware_id()) &&
		(cur_dt_hw_subtype == board_hardware_subtype()) &&
		(cur_dt_hlos_ddr == (target_get_hlos_subtype() & 0x700)) &&
		(cur_dt_entry->soc_rev <= board_soc_version()) &&
		((cur_dt_entry->variant_id & 0x00ffff00) <= (board_target_id() & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[0] & 0x00ffff00) <= (board_pmic_target(0) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[1] & 0x00ffff00) <= (board_pmic_target(1) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[2] & 0x00ffff00) <= (board_pmic_target(2) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[3] & 0x00ffff00) <= (board_pmic_target(3) & 0x00ffff00))) {


		dt_node_tmp = dt_entry_list_init();
		memcpy((char*)dt_node_tmp->dt_entry_m,(char*)cur_dt_entry, sizeof(struct dt_entry));

		dprintf(SPEW, "Add DTB entry %u/%08x/0x%08x/%x/%x/%x/%x/%x/%x/%x\n",
			dt_node_tmp->dt_entry_m->platform_id, dt_node_tmp->dt_entry_m->variant_id,
			dt_node_tmp->dt_entry_m->board_hw_subtype, dt_node_tmp->dt_entry_m->soc_rev,
			dt_node_tmp->dt_entry_m->pmic_rev[0], dt_node_tmp->dt_entry_m->pmic_rev[1],
			dt_node_tmp->dt_entry_m->pmic_rev[2], dt_node_tmp->dt_entry_m->pmic_rev[3],
			dt_node_tmp->dt_entry_m->offset, dt_node_tmp->dt_entry_m->size);

		insert_dt_entry_in_queue(dt_list, dt_node_tmp);
		return 1;
	}
	return 0;
}

board_platform_id() board_hardware_id() board_hardware_subtype() target_get_hlos_subtype() board_soc_version()board_target_id()
几乎都来自board结构体

struct board_data {
	uint32_t platform;  //board_platform_id
	uint32_t foundry_id;
	uint32_t chip_serial;
	uint32_t platform_version;//board_soc_version
	uint32_t platform_hw;//board_hardware_id()
	uint32_t platform_subtype;//board_hardware_subtype
	uint32_t target;//board_target_id()
	uint32_t baseband;
	struct board_pmic_data pmic_info[MAX_PMIC_DEVICES];
	uint32_t platform_hlos_subtype;//target_get_hlos_subtype即board_hlos_subtype
	uint32_t num_pmics;
	uint32_t pmic_array_offset;
	struct board_pmic_data *pmic_info_array;
};

board在platform\msm_shared\board.c 文件里赋值
board_init()
platform_detect()

			board.platform = board_info_v11.board_info_v3.msm_id;
			board.platform_version = board_info_v11.board_info_v3.msm_version;
			board.platform_hw = board_info_v11.board_info_v3.hw_platform;
			board.platform_subtype = board_info_v11.platform_subtype;
			/* * fill in board.target with variant_id information * bit no |31 24 |23 16|15 8|7 0| * board.target = |subtype|plat_hw_ver major|plat_hw_ver minor|hw_platform| * */

			board.target = (((board_info_v11.platform_subtype & 0xff) << 24) |
						   (((board_info_v11.platform_version >> 16) & 0xff) << 16) |
						   ((board_info_v11.platform_version & 0xff) << 8) |
						   (board_info_v11.board_info_v3.hw_platform & 0xff));

			board.foundry_id = board_info_v11.foundry_id;
			board.chip_serial = board_info_v11.chip_serial;
			board.num_pmics = board_info_v11.num_pmics;
			board.pmic_array_offset = board_info_v11.pmic_array_offset;
		}

		/* HLOS subtype * bit no |31 20 | 19 16|15 13 |12 11 | 10 8 | 7 0| * board.platform_hlos_subtype = |reserved | Boot device |Reserved | Panel | DDR detection | subtype| * | bits | | bits | Detection | */
		board.platform_hlos_subtype = (board_get_ddr_subtype() << 8) | (platform_get_boot_dev() << 16) | (platform_detect_panel() << 11);

根据代码里给的注释，从smem里获得

platform_dt_absolute_match过程

static int platform_dt_absolute_match(struct dt_entry *cur_dt_entry, struct dt_entry_node *dt_list)
{

	/* Platform-id * bit no |31 24|23 16|15 0| * |reserved|foundry-id|msm-id| */
	cur_dt_msm_id = (cur_dt_entry->platform_id & 0x0000ffff);
	cur_dt_hw_platform = (cur_dt_entry->variant_id & 0x000000ff);
	cur_dt_hw_subtype = (cur_dt_entry->board_hw_subtype & 0xff);

	/* Determine the bits 10:8 to check the DT with the DDR Size */
	cur_dt_hlos_ddr = (cur_dt_entry->board_hw_subtype & 0x700);

	/* 1. must match the msm_id, platform_hw_id, platform_subtype and DDR size * soc, board major/minor, pmic major/minor must less than board info * 2. find the matched DTB then return 1 * 3. otherwise return 0 */
	if((cur_dt_msm_id == (board_platform_id() & 0x0000ffff)) &&
		(cur_dt_hw_platform == board_hardware_id()) &&
		(cur_dt_hw_subtype == board_hardware_subtype()) &&
		(cur_dt_hlos_ddr == (target_get_hlos_subtype() & 0x700)) &&
		(cur_dt_entry->soc_rev <= board_soc_version()) &&
		((cur_dt_entry->variant_id & 0x00ffff00) <= (board_target_id() & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[0] & 0x00ffff00) <= (board_pmic_target(0) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[1] & 0x00ffff00) <= (board_pmic_target(1) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[2] & 0x00ffff00) <= (board_pmic_target(2) & 0x00ffff00)) &&
		((cur_dt_entry->pmic_rev[3] & 0x00ffff00) <= (board_pmic_target(3) & 0x00ffff00))) {


		dt_node_tmp = dt_entry_list_init();
		memcpy((char*)dt_node_tmp->dt_entry_m,(char*)cur_dt_entry, sizeof(struct dt_entry));
		... ...
}

对比之前需要从dts里将信息提取出来，主要是通过读取三个属性值然后提取

pmic_prop = (const char *)fdt_getprop(dtb, root_offset, "qcom,pmic-id", &len_pmic_id);
board_prop = (const char *)fdt_getprop(dtb, root_offset, "qcom,board-id", &len_board_id);

plat_prop = (const char *)fdt_getprop(dtb, root_offset, “qcom,msm-id”, &len_plat_id);

		board_data[i].variant_id = fdt32_to_cpu(((struct board_id *)board_prop)->variant_id);
		board_data[i].platform_subtype = fdt32_to_cpu(((struct board_id *)board_prop)->platform_subtype);
		dt_entry_array[k].board_hw_subtype = board_data[j].platform_subtype;
		platform_data[i].platform_id = fdt32_to_cpu(((struct plat_id *)plat_prop)->platform_id);
		platform_data[i].soc_rev = fdt32_to_cpu(((struct plat_id *)plat_prop)->soc_rev);
			pmic_data[i].pmic_version[0]= fdt32_to_cpu(((struct pmic_id *)pmic_prop)->pmic_version[0]);
			pmic_data[i].pmic_version[1]= fdt32_to_cpu(((struct pmic_id *)pmic_prop)->pmic_version[1]);
			pmic_data[i].pmic_version[2]= fdt32_to_cpu(((struct pmic_id *)pmic_prop)->pmic_version[2]);
			pmic_data[i].pmic_version[3]= fdt32_to_cpu(((struct pmic_id *)pmic_prop)->pmic_version[3]);

must match the msm_id, platform_hw_id, platform_subtype and DDR size
可见 msm_id, platform_hw_platform, platform_subtype and DDR size 这几个需要完全匹配才可以
cur_dt_msm_id = (cur_dt_entry->platform_id & 0x0000ffff);
来自”qcom,msm-id”

platform_hw_platform = (cur_dt_entry->variant_id & 0x000000ff);
来自 “qcom,board-id”

cur_dt_hw_subtype = (cur_dt_entry->board_hw_subtype & 0xff);
同样来自 “qcom,board-id”

总之，最终会找到一个最合适的dtb，也有可能因为配置不对找不到匹配的dtb文件。

由此可见，在dtb未匹配时，需要修改sbl里的id，或者同步修改dts里的board id，让两者匹配才可以。

dt.img方式

dt.img的编译

device\qcom\common\generate_extra_images.mk

#----------------------------------------------------------------------
# Generate device tree image (dt.img)
#----------------------------------------------------------------------
ifneq ($(strip $(TARGET_NO_KERNEL)),true)
ifeq ($(strip $(BOARD_KERNEL_SEPARATED_DT)),true)
ifeq ($(strip $(BUILD_TINY_ANDROID)),true)
include device/qcom/common/dtbtool/Android.mk
endif

DTBTOOL := $(HOST_OUT_EXECUTABLES)/dtbTool$(HOST_EXECUTABLE_SUFFIX)

INSTALLED_DTIMAGE_TARGET := $(PRODUCT_OUT)/dt.img

possible_dtb_dirs = $(KERNEL_OUT)/arch/$(TARGET_KERNEL_ARCH)/boot/dts/ $(KERNEL_OUT)/arch/arm/boot/dts/ $(KERNEL_OUT)/arch/arm/boot/
dtb_dir = $(firstword $(wildcard $(possible_dtb_dirs)))

define build-dtimage-target
    $(call pretty,"Target dt image: $(INSTALLED_DTIMAGE_TARGET)")
    $(hide) $(DTBTOOL) -o $@ -s $(BOARD_KERNEL_PAGESIZE) -p $(KERNEL_OUT)/scripts/dtc/ $(dtb_dir)
    $(hide) chmod a+r $@
endef

$(INSTALLED_DTIMAGE_TARGET): $(DTBTOOL) $(INSTALLED_KERNEL_TARGET)
	$(build-dtimage-target)

ALL_DEFAULT_INSTALLED_MODULES += $(INSTALLED_DTIMAGE_TARGET)
ALL_MODULES.$(LOCAL_MODULE).INSTALLED += $(INSTALLED_DTIMAGE_TARGET)
endif
endif

可见是使用dtbtool
dtbtool代码定义在device\qcom\common\dtbtool\dtbtool.c, 与这个文件同一目录下的dtbtool.txt是对dtbtool的使用说明。

1.1) Android boot image Header:

Magic (8B)
kernel size (4B)
kernel addr (4B)
ramdisk size (4B)
ramdisk addr (4B)
2ndary size (4B)
2ndary addr (4B)
tags addr (4B)
page size (4B)
unused #1 (4B) (zero in standard Android)
unused #2 (4B) (zero in standard Android)
product name (16B)
kernel cmdline (512B)
id (8B)

1.2) Layout:
A) header (as above – 1 page)
B) kernel (n pages)
C) ramdisk (m pages)
D) second stage (o pages)

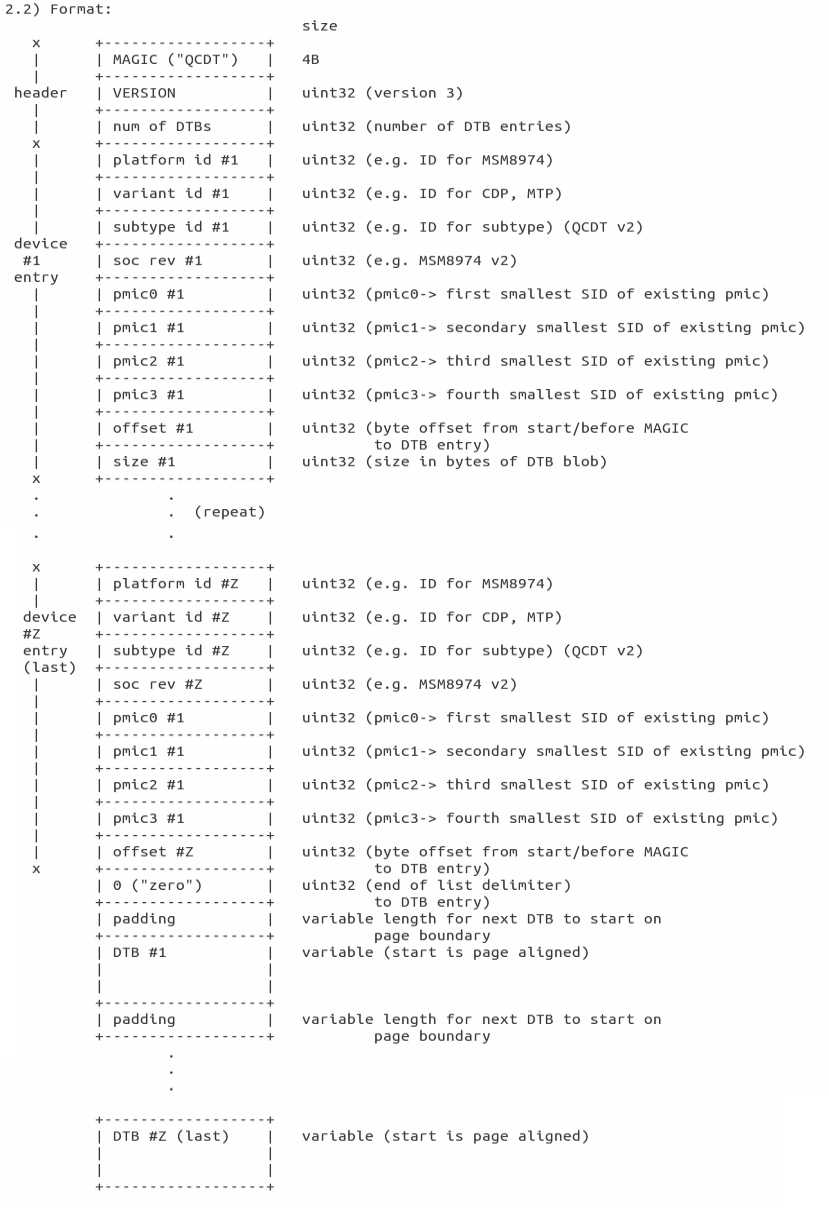

2) QC table of device tree
在这里插入图片描述

dt.img的构造

在这里插入图片描述

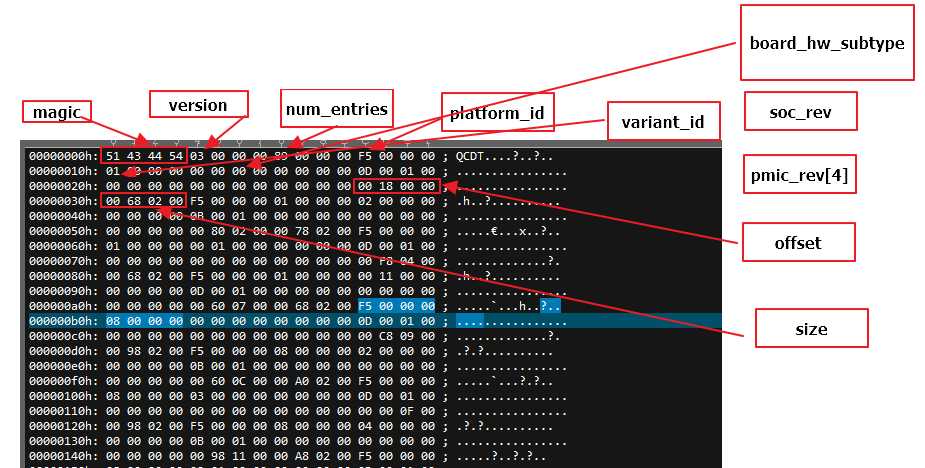

可以看出magic是QCDT，version是3，num_entries是0x89

可以看出offset是0x1800, size是0x26800 （0x1800+0x26800=0x28000）

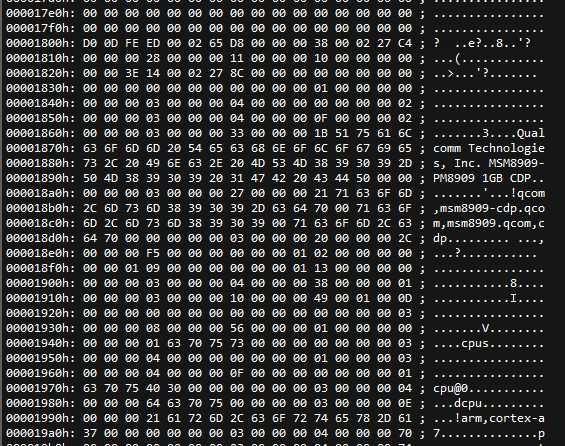

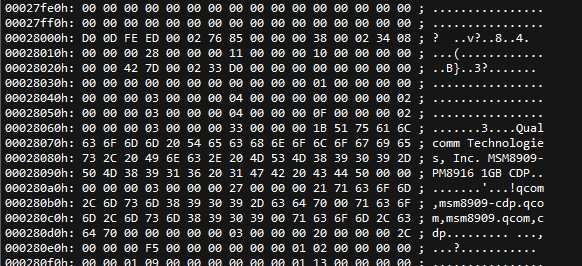

0x28000是另一个dtb的开始
在这里插入图片描述

lk的加载过程代码分析

int boot_linux_from_mmc(void)
{

...............
	if(dt_size) {

		dt_table_offset = ((uint32_t)image_addr + page_size + kernel_actual + ramdisk_actual + second_actual);
		table = (struct dt_table*) dt_table_offset;

		if (dev_tree_validate(table, hdr->page_size, &dt_hdr_size) != 0) {

			dprintf(CRITICAL, "ERROR: Cannot validate Device Tree Table \n");
			return -1;
		}

		/* Its Error if, dt_hdr_size (table->num_entries * dt_entry size + Dev_Tree Header) goes beyound hdr->dt_size*/
		if (dt_hdr_size > ROUND_TO_PAGE(dt_size,hdr->page_size)) {

			dprintf(CRITICAL, "ERROR: Invalid Device Tree size \n");
			return -1;
		}

		/* Find index of device tree within device tree table */
		if(dev_tree_get_entry_info(table, &dt_entry) != 0){

			dprintf(CRITICAL, "ERROR: Getting device tree address failed\n");
			return -1;
		}

		if(dt_entry.offset > (UINT_MAX - dt_entry.size)) {

			dprintf(CRITICAL, "ERROR: Device tree contents are Invalid\n");
			return -1;
		}

		/* Ensure we are not overshooting dt_size with the dt_entry selected */
		if ((dt_entry.offset + dt_entry.size) > dt_size) {

			dprintf(CRITICAL, "ERROR: Device tree contents are Invalid\n");
			return -1;
		}

		if (is_gzip_package((unsigned char *)dt_table_offset + dt_entry.offset, dt_entry.size))
		{

			unsigned int compressed_size = 0;
			out_addr += out_len;
			out_avai_len -= out_len;
			dprintf(INFO, "decompressing dtb: start\n");
			rc = decompress((unsigned char *)dt_table_offset + dt_entry.offset,
					dt_entry.size, out_addr, out_avai_len,
					&compressed_size, &dtb_size);
			if (rc)
			{

				dprintf(CRITICAL, "decompressing dtb failed!!!\n");
				ASSERT(0);
			}

			dprintf(INFO, "decompressing dtb: done\n");
			best_match_dt_addr = out_addr;
		} else {

			best_match_dt_addr = (unsigned char *)dt_table_offset + dt_entry.offset;
			dtb_size = dt_entry.size;
		}

		/* Validate and Read device device tree in the tags_addr */
		if (check_aboot_addr_range_overlap(hdr->tags_addr, dtb_size) ||
			check_ddr_addr_range_bound(hdr->tags_addr, dtb_size))
		{

			dprintf(CRITICAL, "Device tree addresses are not valid\n");
			return -1;
		}

		memmove((void *)hdr->tags_addr, (char *)best_match_dt_addr, dtb_size);
	} else {

		/* Validate the tags_addr */
		if (check_aboot_addr_range_overlap(hdr->tags_addr, kernel_actual) ||
			check_ddr_addr_range_bound(hdr->tags_addr, kernel_actual))
		{

			dprintf(CRITICAL, "Device tree addresses are not valid.\n");
			return -1;
		}
		/* * If appended dev tree is found, update the atags with * memory address to the DTB appended location on RAM. * Else update with the atags address in the kernel header */
		void *dtb;
		dtb = dev_tree_appended(
				(void*)(image_addr + page_size +
					patched_kernel_hdr_size),
				hdr->kernel_size, dtb_offset,
				(void *)hdr->tags_addr);
		if (!dtb) {

			dprintf(CRITICAL, "ERROR: Appended Device Tree Blob not found\n");
			return -1;
		}
	}
....................
}

在这种情况下dt_size是非0的，走第一个分支，第二个分支是zImage-dtb那种方式使用的

int dev_tree_get_entry_info(struct dt_table *table, struct dt_entry *dt_entry_info)
	for(i = 0; found == 0 && i < table->num_entries; i++)
		platform_dt_absolute_match(cur_dt_entry, dt_entry_queue);
	best_match_dt_entry = platform_dt_match_best(dt_entry_queue);

调用关系如上，对每一个dt_entry调用platform_dt_absolute_match，找到最匹配的，匹配方法与zImage-dtb方式类似，不再赘述。

小结

device tree最终编译成dtb文件，而高通平台为了让一个bootimage支持多种不同的配置（甚至是不同的board，不同的平台），将众多的dtb文件一起同时编译和打包。为了区分匹配不同的平台，高通平台需要再sbl里配置id，与device tree里的qcom,pmic-id和qcom,board-id相呼应，这两者需要匹配，才能实现dtb文件的正确加载，然后由lk传递给kernel。而dtb的识别是在lk里实现的，lk代码里对dt.img方式和zImage-dtb方式做了兼容，可以同时识别这两种方式。

发布者：全栈程序员-站长，转载请注明出处：https://javaforall.net/219594.html原文链接：https://javaforall.net

高通平台dtb文件的加载过程「建议收藏」

高通平台dtb文件的加载过程

高通平台对dts的两种打包方式

zImage-dtb

dt.img

zImage-dtb方式

zImage-dtb的编译

二进制文件查看

lk的加载过程代码分析

dt.img方式

dt.img的编译

dt.img的构造

lk的加载过程代码分析

小结

关于作者

全栈程序员-站长

发表回复

高通平台dtb文件的加载过程「建议收藏」

高通平台dtb文件的加载过程

高通平台对dts的两种打包方式

zImage-dtb

dt.img

zImage-dtb方式

zImage-dtb的编译

二进制文件查看

lk的加载过程代码分析

dt.img方式

dt.img的编译

dt.img的构造

lk的加载过程代码分析

小结

关于作者

全栈程序员-站长

相关推荐

QComboBox自定义设置

Android ImageView 的scaleType 属性「建议收藏」

win10 python环境_win10安装python

input事件的获取

break和continue的作用和区别是什么？

STM32与DS1302设计时钟芯片，超详细

发表回复
